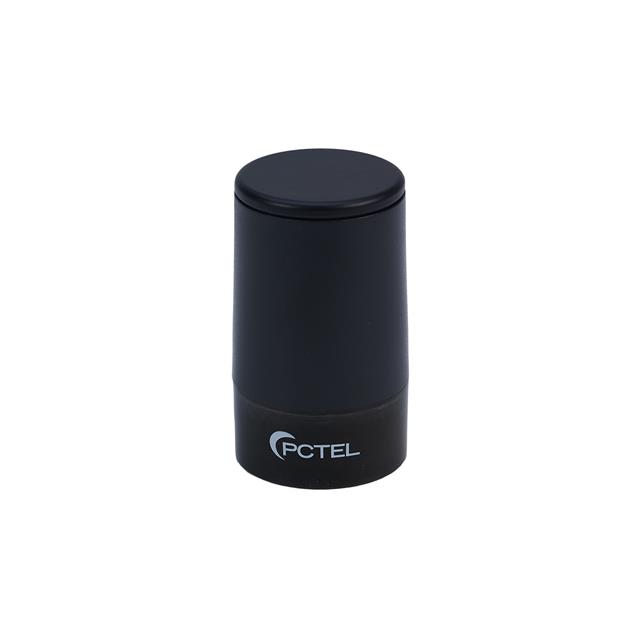

BMLPVDB800/1900

Active

Amphenol PCTEL

MULTIBAND LOW PROFILE ANTENNA

Search across all available documentation for this part.

Active

Amphenol PCTEL

MULTIBAND LOW PROFILE ANTENNA

Technical Specifications

Parameters and characteristics for this part

Specification	BMLPVDB800/1900

Antenna Type	Dome
Applications	LTE, LoRa, ISM, Wi-Fi, LMR/TETRA/P25, Bluetooth, LPWAN
Frequency (Center/Band)	1.85 GHz, 883 MHz
Frequency Range [Max]	960 MHz, 1.99 GHz
Frequency Range [Min]	1.71 GHz, 806 MHz
Gain	3 dBi, 4 dBi
Height (Max) [Max]	2.4 in
Height (Max) [Max]	60.96 mm
Ingress Protection	IP67
Mounting Type	Connector Mount, Stud, Through Hole, NMO
Number of Bands	2
Power - Max [Max]	100 W
RF Family/Standard	WiFi, Bluetooth, General ISM
VSWR	2

Part	Antenna Type	VSWR	Frequency (Center/Band)	Gain	Ingress Protection	Mounting Type	RF Family/Standard	Height (Max) [Max]	Height (Max) [Max]	Frequency Range [Max]	Frequency Range [Min]	Applications	Power - Max [Max]	Number of Bands
Amphenol PCTEL BMLPVDB800/1900	Dome	2	1.85 GHz 883 MHz	3 dBi 4 dBi	IP67	Connector Mount NMO Stud Through Hole	Bluetooth General ISM WiFi	2.4 in	60.96 mm	1.99 GHz 960 MHz	1.71 GHz 806 MHz	Bluetooth ISM LMR/TETRA/P25 LoRa LPWAN LTE Wi-Fi	100 W	2
Amphenol PCTEL BMLPVDB800/1900HD	Dome	2	1.85 GHz 883 MHz	3 dBi 4 dBi	IP67	Connector Mount NMO Stud Through Hole	Bluetooth General ISM WiFi	2.4 in	60.96 mm	1.99 GHz 960 MHz	1.71 GHz 806 MHz	Bluetooth ISM LMR/TETRA/P25 LoRa LPWAN LTE Wi-Fi	100 W	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10	$ 30.74

General part information

RF ANTENNA Bluetooth, ISM, LoRa, LPWAN, LMR/TETRA/P25, LTE, Wi-Fi Dome Connector Mount, NMO, Stud, Through Hole
