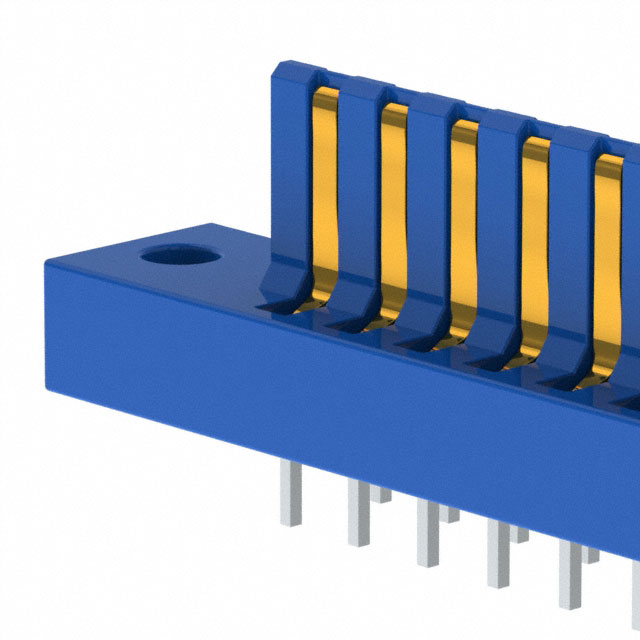

EBM22MMWD

Active

Sullins Connector Solutions

CONN CARDEDGE MALE 44POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

EBM22MMWD

Active

Sullins Connector Solutions

CONN CARDEDGE MALE 44POS 0.156

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EBM22MMWD

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Fits Female Edgecards
Color	Blue
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Phosphor Bronze
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature	0.125 "
Flange Feature	3.18 mm
Gender	Male
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole
Number of Positions	44
Number of Positions/Bay/Row [custom]	22
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder

EBM22 Series

...

Part	Number of Rows	Contact Type	Gender	Material - Insulation	Contact Finish	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Color	Termination	Pitch [x]	Pitch [x]	Card Type	Contact Material	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Number of Positions	Read Out	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row [custom]	Features	Flange Feature	Flange Feature
Sullins Connector Solutions EBM22DCBH	2	Hairpin Bellows	Female	Polybutylene Terephthalate (PBT)	Gold	0.062 in	1.57 mm	10 Áin	0.25 Ám	Blue	Solder	0.156 in	3.96 mm	Non Specified - Dual Edge	Phosphor Bronze	Through Hole Right Angle	0.125 in	3.18 mm	Top Mount Opening Unthreaded	44	Dual	125 °C	-65 ░C	22
Sullins Connector Solutions EBM22DRTN	2	Full Bellows	Female	Polybutylene Terephthalate (PBT)	Gold	0.062 in	1.57 mm	10 Áin	0.25 Ám	Blue	Solder	0.156 in	3.96 mm	Non Specified - Dual Edge	Phosphor Bronze	Through Hole				44	Dual	125 °C	-65 ░C	22
Sullins Connector Solutions EBM22DSXS	2	Full Bellows	Female	Polybutylene Terephthalate (PBT)	Gold	0.062 in	1.57 mm	10 Áin	0.25 Ám	Blue	Solder	0.156 in	3.96 mm	Non Specified - Dual Edge	Phosphor Bronze	Through Hole	0.125 in	3.18 mm	Side Mount Opening Unthreaded	44	Single	125 °C	-65 ░C	22
Sullins Connector Solutions EBM22DTKN-S288	2	Loop Bellows	Female	Polybutylene Terephthalate (PBT)	Gold	0.062 in	1.57 mm	10 Áin	0.25 Ám	Blue	Solder	0.156 in	3.96 mm	Non Specified - Dual Edge	Phosphor Bronze	Board Edge Straddle Mount				44	Dual	125 °C	-65 ░C	22	Card Extender
Sullins Connector Solutions EBM22DCBN	2	Hairpin Bellows	Female	Polybutylene Terephthalate (PBT)	Gold	0.062 in	1.57 mm	10 Áin	0.25 Ám	Blue	Solder	0.156 in	3.96 mm	Non Specified - Dual Edge	Phosphor Bronze	Through Hole Right Angle				44	Dual	125 °C	-65 ░C	22
Sullins Connector Solutions EBM22DRMH-S288	2	Loop Bellows	Female	Polybutylene Terephthalate (PBT)	Gold	0.062 in	1.57 mm	10 Áin	0.25 Ám	Blue	Wire Wrap	0.156 in	3.96 mm	Non Specified - Dual Edge	Phosphor Bronze	Board Edge Straddle Mount	0.125 in	3.18 mm	Top Mount Opening Unthreaded	44	Dual	125 °C	-65 ░C	22	Card Extender
Sullins Connector Solutions EBM22DCWS	2	Hairpin Bellows	Female	Polybutylene Terephthalate (PBT)	Gold	0.062 in	1.57 mm	10 Áin	0.25 Ám	Blue	Solder	0.156 in	3.96 mm	Non Specified - Dual Edge	Phosphor Bronze	Through Hole	0.125 in	3.18 mm	Side Mount Opening Unthreaded	44	Dual	125 °C	-65 ░C	22
Sullins Connector Solutions EBM22DSUN	2	Full Bellows	Female	Polybutylene Terephthalate (PBT)	Gold	0.062 in	1.57 mm	10 Áin	0.25 Ám	Blue	Solder	0.156 in	3.96 mm	Non Specified - Dual Edge	Phosphor Bronze	Through Hole				44	Single	125 °C	-65 ░C	22
Sullins Connector Solutions EBM22DSAN	2	Full Bellows	Female	Polybutylene Terephthalate (PBT)	Gold	0.062 in	1.57 mm	10 Áin	0.25 Ám	Blue	Solder	0.156 in	3.96 mm	Non Specified - Dual Edge	Phosphor Bronze	Through Hole Right Angle				44	Dual	125 °C	-65 ░C	22
Sullins Connector Solutions EBM22MMWD	2		Male	Polybutylene Terephthalate (PBT)	Gold	0.062 in	1.57 mm	10 Áin	0.25 Ám	Blue	Solder	0.156 in	3.96 mm	Fits Female Edgecards	Phosphor Bronze	Through Hole			Flush Mount Top Opening Unthreaded	44	Dual	125 °C	-65 ░C	22		0.125 "	3.18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.91
		10	$ 6.25
		30	$ 5.90
		40	$ 5.76
		80	$ 5.47
		230	$ 4.89
		440	$ 4.61
		950	$ 4.03
		2400	$ 3.83

Description

General part information

EBM22 Series

44 Position Male Connector Fits Female Edgecards Gold 0.156" (3.96mm) Blue

Documents

Technical documentation and resources

No documents available
