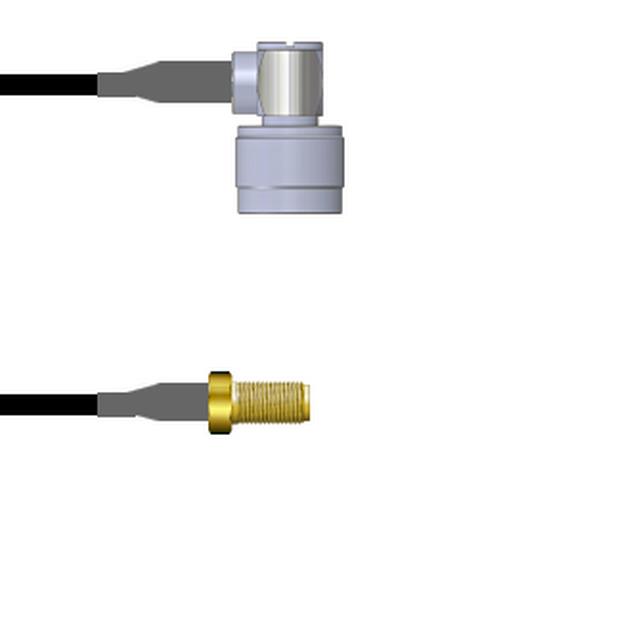

Q-2C02V0003084i
ActiveAmphenol Custom Cable
CBL ASSY SMA-NTYPE JACK-PLUG 7'
Deep-Dive with AI
Search across all available documentation for this part.
Q-2C02V0003084i
ActiveAmphenol Custom Cable
CBL ASSY SMA-NTYPE JACK-PLUG 7'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2C02V0003084i |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 11 GHz |
| Length | 84 in |
| Length | 2.1 m |
| Length | 7 ft |
| Overall Impedance | 50 Ohms |
| Style | SMA to N-Type |
Q-2C02V0 Series
| Part | Frequency - Max [Max] | Cable Type | Overall Impedance | 1st Connector Mounting Feature | Style | Length [x] | Length [x] | 1st Connector | 1st Connector Mounting Type | Color | Features | 1st Contact Gender | 2nd Contact Gender | 2nd Connector | 2nd Connector Mounting Type | Length | Length | Length | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | 11 GHz | RG-174 | 50 Ohms | Bulkhead - Front Side Nut | SMA to N-Type | 457.2 mm | 457.2 mm | SMA Jack | Panel Mount | Black | Shielded | Female | Male | N-Type Plug Right Angle | Free Hanging (In-Line) | ||||
Amphenol Custom Cable | 11 GHz | RG-316 | 50 Ohms | Bulkhead - Front Side Nut | SMA to N-Type | SMA Jack | Panel Mount | Copper | Shielded | Female | Male | N-Type Plug Right Angle | Free Hanging (In-Line) | 29.53 " | 750 mm | ||||
Amphenol Custom Cable | 11 GHz | RG-174 | 50 Ohms | Bulkhead - Front Side Nut | SMA to N-Type | SMA Jack | Panel Mount | Black | Shielded | Female | Male | N-Type Plug Right Angle | Free Hanging (In-Line) | 9 " | 228.6 mm | ||||
Amphenol Custom Cable | 11 GHz | RG-174 | 50 Ohms | Bulkhead - Front Side Nut | SMA to N-Type | SMA Jack | Panel Mount | Black | Shielded | Female | Male | N-Type Plug Right Angle | Free Hanging (In-Line) | 78.7 in | 2 m | 6.6 ft | |||
Amphenol Custom Cable | 11 GHz | RG-174 | 50 Ohms | Bulkhead - Front Side Nut | SMA to N-Type | SMA Jack | Panel Mount | Black | Shielded | Female | Male | N-Type Plug Right Angle | Free Hanging (In-Line) | 84 in | 2.1 m | 7 ft | |||
Amphenol Custom Cable | 11 GHz | RG-316 | 50 Ohms | Bulkhead - Front Side Nut | SMA to N-Type | SMA Jack | Panel Mount | Copper | Shielded | Female | Male | N-Type Plug Right Angle | Free Hanging (In-Line) | 36 in | 91.44 cm | ||||
Amphenol Custom Cable | 11 GHz | RG-316 | 50 Ohms | Bulkhead - Front Side Nut | SMA to N-Type | 457.2 mm | 457.2 mm | SMA Jack | Panel Mount | Copper | Shielded | Female | Male | N-Type Plug Right Angle | Free Hanging (In-Line) | ||||
Amphenol Custom Cable | 11 GHz | RG-316 | 50 Ohms | Bulkhead - Front Side Nut | SMA to N-Type | SMA Jack | Panel Mount | Copper | Shielded | Female | Male | N-Type Plug Right Angle | Free Hanging (In-Line) | 72 in | 1.8 m | 6 ft | |||
Amphenol Custom Cable | 11 GHz | RG-316 | 50 Ohms | Bulkhead - Front Side Nut | SMA to N-Type | 250 mm | SMA Jack | Panel Mount | Copper | Shielded | Female | Male | N-Type Plug Right Angle | Free Hanging (In-Line) | 9.843 " | ||||
Amphenol Custom Cable | 11 GHz | RG-174 | 50 Ohms | Bulkhead - Front Side Nut | SMA to N-Type | SMA Jack | Panel Mount | Black | Shielded | Female | Male | N-Type Plug Right Angle | Free Hanging (In-Line) | 6 in | 152.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 86.82 | |
| 25 | $ 85.13 | |||
| 50 | $ 83.45 | |||
| 100 | $ 81.76 | |||
| 250 | $ 80.07 | |||
Description
General part information
Q-2C02V0 Series
Cable Assembly Coaxial SMA to N-Type RG-174 84.0" (2.1m) 7.0'
Documents
Technical documentation and resources
No documents available
