02T-WPJV-1-SM
ActiveJST Sales America Inc.

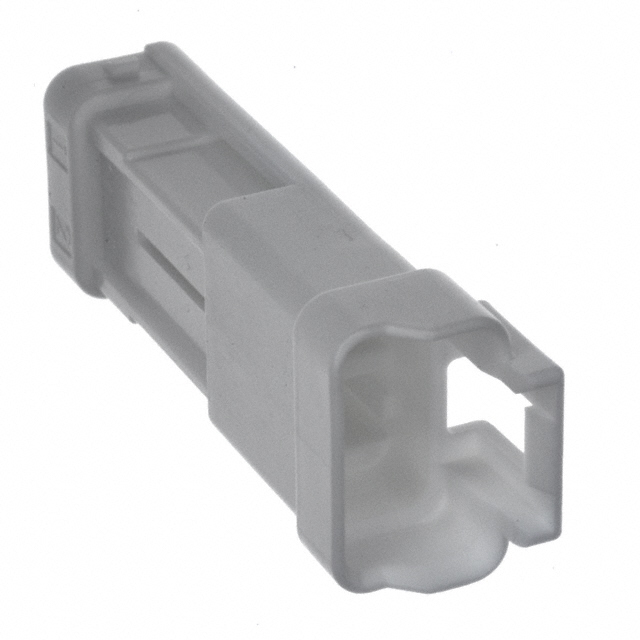

CONN PLUG HSG 2POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
02T-WPJV-1-SM
ActiveJST Sales America Inc.
CONN PLUG HSG 2POS 5.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 02T-WPJV-1-SM |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | JIS C 0920 Grade Level 7 |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.43 | |
| 10 | $ 1.09 | |||
| 25 | $ 0.98 | |||
| 50 | $ 0.91 | |||
| 100 | $ 0.84 | |||
| 250 | $ 0.76 | |||
| 500 | $ 0.70 | |||
| 1000 | $ 0.65 | |||
| 2500 | $ 0.60 | |||
Description
General part information
02T-WPJV Series
2 Rectangular Connectors - Housings Plug Natural 0.197" (5.00mm)
