RJSSE-5380-02

Active

Amphenol ICC (Commercial Products)

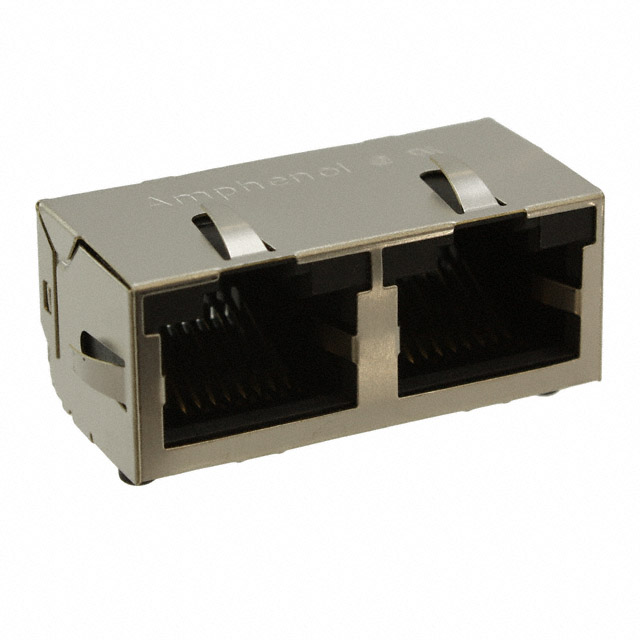

CONN MOD JACK 8P8C R/A SHIELDED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RJSSE-5380-02

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C R/A SHIELDED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJSSE-5380-02

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Contact Material	Phosphor Bronze
Features	Solder Retention, Board Guide
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Surface Mount
Number of Ports	2
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	90 °
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

RJSSE Series

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Contact Material	Number of Positions/Contacts	Number of Rows	Number of Ports	LED Color	Shielding	Contact Finish	Tab Direction	Mounting Type	Orientation	Contact Finish Thickness	Contact Finish Thickness	Termination	Features
Amphenol ICC (Commercial Products) RJSSE706102T	Jack	85 °C	-55 °C	Thermoplastic	Phosphor Bronze	6p6c (RJ11 RJ12 RJ14 RJ25)	1	2	Does Not Contain LED	Unshielded	Gold
Amphenol ICC (Commercial Products) RJSSE7060	Jack	85 °C	-55 °C	Thermoplastic	Phosphor Bronze	6p6c (RJ11 RJ12 RJ14 RJ25)	1	1	Does Not Contain LED	Unshielded	Gold	Up	Surface Mount	90 °	0.51 µm	20 µin	Solder
Amphenol ICC (Commercial Products) RJSSE7061	Jack	85 °C	-55 °C	Thermoplastic	Phosphor Bronze	6p6c (RJ11 RJ12 RJ14 RJ25)	1	1	Does Not Contain LED	Unshielded	Gold	Up	Surface Mount	90 °	0.51 µm	20 µin	Solder	Light Pipe
Amphenol ICC (Commercial Products) RJSSE-5380-02	Jack	85 °C	-55 °C	Thermoplastic	Phosphor Bronze	8p8c (RJ45 Ethernet)	1	2	Does Not Contain LED	Shielded EMI Finger	Gold	Up	Surface Mount	90 °	0.51 µm	20 µin	Solder	Board Guide Solder Retention
Amphenol ICC (Commercial Products) RJSSE5580	Jack	85 °C	-55 °C	Thermoplastic	Phosphor Bronze	8p8c (RJ45 Ethernet)	1	1	Does Not Contain LED	Shielded EMI Finger	Gold	Up	Surface Mount	90 °	0.51 µm	20 µin	Solder	Board Guide
Amphenol ICC (Commercial Products) RJSSE538101T	Jack	85 °C	-55 °C	Thermoplastic	Phosphor Bronze	8p8c (RJ45 Ethernet)	1	1	Does Not Contain LED	Shielded EMI Finger	Gold	Up	Surface Mount	90 °	0.51 µm	20 µin	Solder	Board Guide Light Pipe Solder Retention
Amphenol ICC (Commercial Products) RJSSE5382	Jack	85 °C	-55 °C	Thermoplastic	Phosphor Bronze	8p8c (RJ45 Ethernet)	1	1	Does Not Contain LED	Shielded EMI Finger	Gold	Up	Surface Mount	90 °	1.27 µm	50 µin	Solder	Board Guide Light Pipe Solder Retention
Amphenol ICC (Commercial Products) RJSSE538201T	Jack	85 °C	-55 °C	Thermoplastic	Phosphor Bronze	8p8c (RJ45 Ethernet)	1	1	Does Not Contain LED	Shielded EMI Finger	Gold	Up	Surface Mount	90 °	1.27 µm	50 µin	Solder	Board Guide Light Pipe Solder Retention
Amphenol ICC (Commercial Products) RJSSE5F80	Jack	85 °C	-55 °C	Thermoplastic	Phosphor Bronze	8p8c (RJ45 Ethernet)	1	1	Does Not Contain LED	Shielded	Gold	Up	Surface Mount	90 °	0.51 µm	20 µin	Solder
Amphenol ICC (Commercial Products) RJSSE-5080-04	Jack	85 °C	-55 °C	Thermoplastic	Phosphor Bronze	8p8c (RJ45 Ethernet)	1	4	Does Not Contain LED	Unshielded	Gold	Up	Surface Mount	90 °	0.51 µm	20 µin	Solder	Board Guide Solder Retention

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.28
		10	$ 3.88
		25	$ 3.68
		60	$ 3.59
		120	$ 3.42
		240	$ 3.00
		480	$ 2.91
		960	$ 2.48
		2400	$ 2.31

Description

General part information

RJSSE Series

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger
