031-6111

Active

Amphenol RF

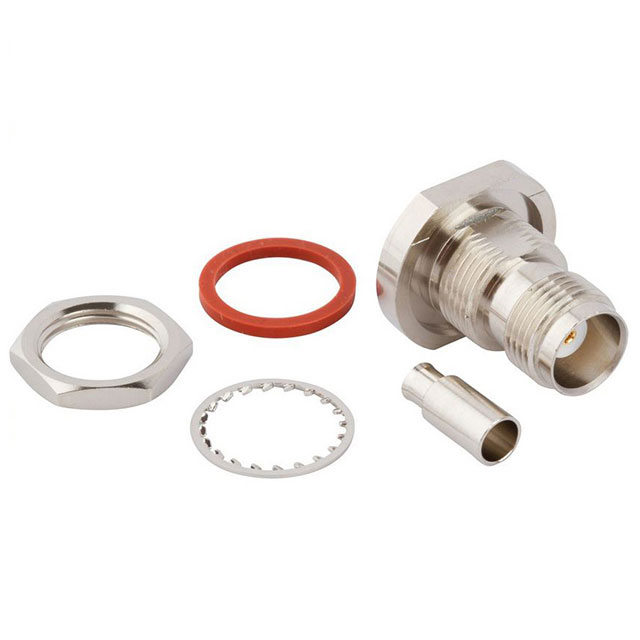

CONN TNC JACK STR 50 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

031-6111

Active

Amphenol RF

CONN TNC JACK STR 50 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-6111

Body Finish	Nickel
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Lockwasher, 1 Ferrule, 1 Contact, 1 Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	500 V

031-61 Series

Part	Impedance	Contact Termination	Frequency - Max [Max]	Connector Type	Center Contact Plating	Number of Ports	Connector Style	Center Contact Material	Includes	Body Finish	Ingress Protection	Shield Termination	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Cable Group	Dielectric Material	Mounting Feature	Housing Color	Body Material	Mating Cycles	Style	Conversion Type	Adapter Series	Adapter Type	Convert From (Adapter End)	Fastening Type	Convert To (Adapter End)	Center Gender	Mounting Type	Cable Group [Min]	Cable Group [Max]	Insertion Loss
Amphenol RF 031-6110	50 Ohms	Crimp Solder	3 GHz	Jack Male Pin	Gold	1	RP-TNC	Phosphor Bronze	1 Connector 1 Contact 1 Ferrule	Nickel	IP67 - Dust Tight Waterproof	Crimp	500 V	85 °C	-40 °C	188 188A 316 LMR-100 M17/119-RG174 RG-174	Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut	Silver	Brass	500
Amphenol RF 031-6111	50 Ohms	Crimp Solder	3 GHz	Female Socket Jack	Gold	1	TNC	Phosphor Bronze	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut	Nickel	IP67 - Dust Tight Waterproof	Crimp	500 V	85 °C	-40 °C	188 188A 316 LMR-100 M17/119-RG174 RG-174	Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut	Silver	Brass	500
Amphenol RF 031-6101	50 Ohms		6000 MHz		Gold			Brass		Nickel				90 °C	-40 °C		Polytetrafluoroethylene (PTFE)	Flange		Brass	30	Straight	Between Series	RP-TNC to U.FL (UMCC) AMC	Jack to Jack	U.FL (UMCC) Jack Male Pin	Snap-On Threaded	Male Pin RP-TNC Jack	Male to Male
Amphenol RF 031-6157	50 Ohms	Solder	11 GHz	Male Pin Plug	Gold	1	TNC	Brass	1 Connector 1 End Cap 1 Ferrule	Nickel		Crimp		165 °C	-65 ░C	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Polytetrafluoroethylene (PTFE)		Silver	Brass	500									Free Hanging (In-Line) Right Angle
Amphenol RF 031-6179	50 Ohms	Solder	11 GHz	Female Socket Jack	Gold	1	TNC	Phosphor Bronze	Connector Contact Gasket Insulator Lockwasher Nut	Nickel		Solder		165 °C	-65 ░C	RG-405 Semi Rigid	Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut	Silver	Brass	500										0.085 in	0.086 in
Amphenol RF 031-6140	50 Ohms	Crimp	11 GHz	Male Pin Plug	Gold	1	TNC	Brass	1 Connector 1 Contact 1 Ferrule	Nickel		Crimp	500 V	165 °C	-65 ░C	213 214 Belden 9258 LMR-240 RG-8	Polytetrafluoroethylene (PTFE)		Silver	Brass	500									Free Hanging (In-Line)
Amphenol RF 031-6141	50 Ohms	Crimp	11 GHz	Male Pin Plug	Gold	1	TNC	Brass	1 Connector 1 Contact 1 Ferrule	Nickel		Crimp	500 V	165 °C	-65 ░C	LMR-600	Polytetrafluoroethylene (PTFE)		Silver	Brass	500									Free Hanging (In-Line)
Amphenol RF 031-6116	50 Ohms	Solder	1 GHz	Female Socket Male Pin Plug	Gold	1	BNC	Beryllium Copper Brass		Nickel		Clamp	350 V	165 °C	-65 ░C		Polytetrafluoroethylene (PTFE)		Silver	Brass	500						Bayonet Lock			Free Hanging (In-Line)			0.2 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.79
		10	$ 26.09
		25	$ 24.96
		50	$ 24.16
		100	$ 23.35
		300	$ 22.06

Description

General part information

031-61 Series

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp or Solder

Documents

Technical documentation and resources

No documents available
