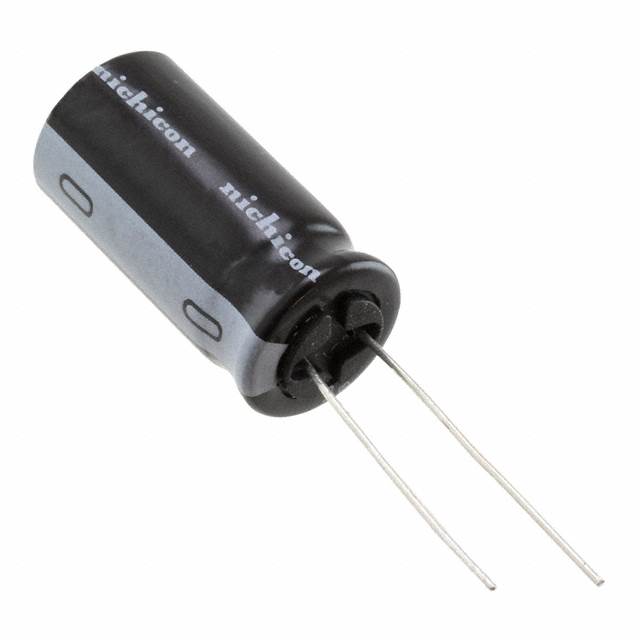

UVY2A221MHD1TO

Active

NICHICON

CAP ALUM 220UF 20% 100V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Miniature Type Taping Spec

UVY2A221MHD1TO

Active

NICHICON

CAP ALUM 220UF 20% 100V RADIAL

Deep-Dive with AI

DocumentsDatasheet Miniature Type Taping Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UVY2A221MHD1TO

Applications	General Purpose
Capacitance	220 µF
Height - Seated (Max) [Max] [z]	22 mm
Height - Seated (Max) [Max] [z]	0.866 in
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	585 mA
Ripple Current @ Low Frequency	390 mA
Size / Dimension [diameter]	0.492 in
Size / Dimension [diameter]	12.5 mm
Tolerance	20 %
Voltage - Rated	100 V

UVY2A Series

Part	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Package / Case	Lifetime @ Temp.	Polarization	Mounting Type	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
NICHICON UVY2A4R7MDD1TA	20 %	105 ░C	-55 °C	64 mA	Radial Can	1000 Hrs	Polar	Through Hole	General Purpose	5 mm	0.197 "	100 V	32 mA	0.492 in	12.5 mm	2 mm	0.079 in	4.7 µF
NICHICON UVY2A100MDD1TA	20 %	105 ░C	-55 °C	100 mA	Radial Can	1000 Hrs	Polar	Through Hole	General Purpose	5 mm	0.197 "	100 V	50 mA	0.492 in	12.5 mm	2 mm	0.079 in	10 µF
NICHICON UVY2A010MDD1TD	20 %	105 ░C	-55 °C	30 mA	Radial Can	1000 Hrs	Polar	Through Hole	General Purpose	5 mm	0.197 "	100 V	15 mA	0.492 in	12.5 mm	2 mm	0.079 in	1 µF
NICHICON UVY2A100MDD1TD	20 %	105 ░C	-55 °C	100 mA	Radial Can	1000 Hrs	Polar	Through Hole	General Purpose	5 mm	0.197 "	100 V	50 mA	0.492 in	12.5 mm	2 mm	0.079 in	10 µF
NICHICON UVY2A3R3MDD1TA	20 %	105 ░C	-55 °C	58 mA	Radial Can	1000 Hrs	Polar	Through Hole	General Purpose	5 mm	0.197 "	100 V	29 mA	0.492 in	12.5 mm	2 mm	0.079 in	3.3 µF
NICHICON UVY2AR33MDD1TA	20 %	105 ░C	-55 °C	10 mA	Radial Can	1000 Hrs	Polar	Through Hole	General Purpose	5 mm	0.197 "	100 V	5 mA	0.492 in	12.5 mm	2 mm	0.079 in	0.33 µF
NICHICON UVY2A221MHD1TO	20 %	105 ░C	-55 °C	585 mA	Radial Can	2000 Hrs	Polar	Through Hole	General Purpose	12.5 mm	0.492 in	100 V	390 mA			5 mm	0.197 in	220 µF	22 mm	0.866 in
NICHICON UVY2AR22MDD1TD	20 %	105 ░C	-55 °C	6.8 mA	Radial Can	1000 Hrs	Polar	Through Hole	General Purpose	5 mm	0.197 "	100 V	3.4 mA	0.492 in	12.5 mm	2 mm	0.079 in	0.22 µF
NICHICON UVY2A470MPD1TA	20 %	105 ░C	-55 °C	280 mA	Radial Can	1000 Hrs	Polar	Through Hole	General Purpose	8 mm	0.315 "	100 V	140 mA			3.5 mm	0.138 in	47 µF	13 mm	0.512 "
NICHICON UVY2A332MRD	20 %	105 ░C	-55 °C	2.3805 A	Radial Can	2000 Hrs	Polar	Through Hole	General Purpose	25 mm	0.984 "	100 V	2.07 A			12.5 mm	0.492 in	3.3 mF	52 mm	2.047 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.34
		10	$ 0.84
		50	$ 0.64
		100	$ 0.57
	Tape & Box (TB)	500	$ 0.27
		1000	$ 0.27

Description

General part information

UVY2A Series

220 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C

Documents

Technical documentation and resources

Datasheet

Miniature Type Taping Spec

Datasheet
