ANT-916-HESM

Active

TE Connectivity Linx

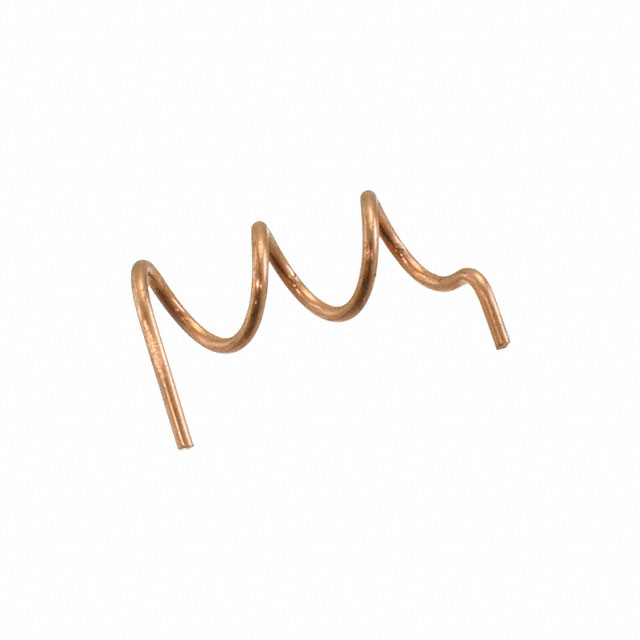

RF ANT 916MHZ HELICAL SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANT-916-HESM

Active

TE Connectivity Linx

RF ANT 916MHZ HELICAL SM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ANT-916-HESM

Antenna Type	Helical
Applications	Sensor Networks, LoRa, ISM, Sigfox
Frequency (Center/Band)	915 MHz
Frequency Group [Max]	1 GHz
Frequency Group [Min]	300 MHz
Frequency Range [Max]	965 MHz
Frequency Range [Min]	865 MHz
Gain	2.4 dBi
Height (Max) [Max]	8.9 mm
Height (Max) [Max]	0.35 in
Mounting Type	Surface Mount
Number of Bands	1
RF Family/Standard	General ISM
Termination	Solder
VSWR	2

ANT-916 Series

Part	Frequency Range [Max]	Frequency Range [Min]	Termination	Number of Bands	Mounting Type	Applications	VSWR	Gain	Frequency Group [Max]	Frequency Group [Min]	Height (Max) [Max]	Height (Max)	Antenna Type	RF Family/Standard	Frequency (Center/Band)	Height (Max) [Max]	Features	Features	Ingress Protection	Height (Max) [Max] [z]	Height (Max)
TE Connectivity Linx ANT-916-JJB-HT-T	928 MHz	902 MHz	Solder	1	Through Hole	ISM LoRa Sensor Networks Sigfox	2	-12.3 dBi	1 GHz	300 MHz	0.48 in	12.2 mm	Whip Straight	General ISM	915 MHz
TE Connectivity Linx ANT-916-MHW-SMA-S	1.016 GHz	816 MHz		1	Adhesive	ISM LoRa Sensor Networks Sigfox	1.9	5.4 dBi	1 GHz	300 MHz	5.433 in		Whip Center-Fed Double	General ISM	915 MHz	138 mm	Cable - 2m
TE Connectivity Linx ANT-916-MHW-SMA-L	1.016 GHz	816 MHz		1	Adhesive	ISM LoRa Sensor Networks Sigfox	1.9	5.4 dBi	1 GHz	300 MHz	5.433 in		Whip Center-Fed Double	General ISM	916 MHz	138 mm	Cable	4.6 m
TE Connectivity Linx ANT-916-HESM	965 MHz	865 MHz	Solder	1	Surface Mount	ISM LoRa Sensor Networks Sigfox	2	2.4 dBi	1 GHz	300 MHz	0.35 in		Helical	General ISM	915 MHz	8.9 mm
TE Connectivity Linx ANT-916-PW-QW-UFL	965 MHz	865 MHz	IPEX MHF1 U.FL (UMCC)	1		ISM LoRa Sensor Networks Sigfox	1.9	1.8 dBi	1 GHz	300 MHz	3.15 in		Whip Straight	General ISM	915 MHz	80 mm	Cable	216 mm
TE Connectivity Linx ANT-916-ID-2000-SMA	945 MHz	895 MHz		1	Bracket Mount	ISM LoRa Sensor Networks Sigfox	1.9	1.6 dBi	1 GHz	300 MHz	4.906 in		Whip Straight	General ISM	915 MHz	124.6 mm	Cable - 2m		IP67
TE Connectivity Linx ANT-916-USP	928 MHz	904 MHz	Solder	1	Surface Mount	ISM LoRa Sensor Networks Sigfox	1.9	0.3 dBi	1 GHz	300 MHz		2.54 mm	Chip	General ISM	915 MHz					0.1 in
TE Connectivity Linx ANT-916-CW-RAH-SMA	970 MHz	850 MHz	SMA	1	Connector Mount		1.9	2.2 dBi	1 GHz	300 MHz	1.829 in	46.46 mm			916 MHz
TE Connectivity Linx ANT-916-PW-LP	951 MHz	881 MHz	Screw-Mount	1		ISM LoRa Sensor Networks Sigfox	1.9	2.4 dBi	1 GHz	300 MHz	1.988 in	50.5 mm	Whip Straight	General ISM	915 MHz
TE Connectivity Linx ANT-916-PML-UFL	951 MHz	881 MHz	IPEX MHF1 U.FL (UMCC)	1	Connector Mount	ISM LoRa Sensor Networks Sigfox	1.9	-4 dBi	1 GHz	300 MHz		5.917 in	Tilt Whip	General ISM	915 MHz		Cable	305 mm			150.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.26
		250	$ 1.20
		500	$ 1.13
		1000	$ 0.99

Description

General part information

ANT-916 Series

RF ANTENNA ISM, LoRa, Sensor Networks, SigFox Helical Solder Surface Mount
