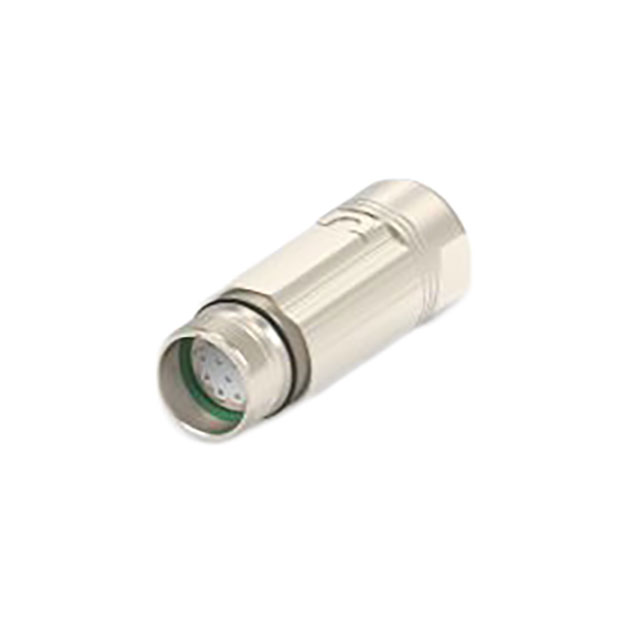

AKA020N00590038000

Active

TE Intercontec

EXTENSION

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AKA020N00590038000

Active

TE Intercontec

EXTENSION

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AKA020N00590038000

Backshell Material, Plating	Nickel, Zinc Die Cast
Cable Opening [Max] [diameter]	17 mm
Cable Opening [Max] [diameter]	0.669 in
Cable Opening [Min] [diameter]	0.551 in
Cable Opening [Min] [diameter]	14 mm
Color	Silver
Connector Type	Female Sockets, Plug
Current Rating (Amps)	7 A
Fastening Type	Push-Twist
Features	Backshell
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	23-12
Shielding	Shielded
Termination	Screw
Voltage Rating	125 VAC

AKA02 Series

Part	Contact Shape	Mounting Feature	Note	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Orientation	Mounting Type	Includes	Ingress Protection	Material Flammability Rating	Housing Color	Fastening Type	Features	Number of Positions	Shielding	Shell Material	Insert Material	Shell Finish	Type	Color	Backshell Material, Plating	Primary Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Voltage Rating	Current Rating (Amps)	Termination
TE Intercontec AKA020N00410240000	Circular	Bulkhead - Front Side Nut	Contacts Not Included	M23-12	-20 C	130 °C	Receptacle Housing	Keyed	Free Hanging (In-Line) Panel Mount	1 Backshell 1 Cable Clamp 1 Connector 1 O-Ring	IP66/IP67	UL94 V-0	Silver	Push-Twist	Backshell Cable Clamp	12	Shielded	Zinc Die Cast	Polybutylene Terephthalate (PBT)	Nickel	For Male Pins
TE Intercontec AKA020N00620200000	Circular		Contacts Not Included	M23-12	-20 C	130 °C	Receptacle Housing	Keyed	Free Hanging (In-Line)	1 Backshell 1 Cable Clamp 1 Connector	IP66/IP67	UL94 V-0	Silver	Push-Twist	Backshell Cable Clamp	12	Shielded	Zinc Die Cast	Polybutylene Terephthalate (PBT)	Nickel	For Male Pins
TE Intercontec AKA020N00590038000				23-12	-20 C	130 °C	Female Sockets Plug	Keyed	Free Hanging (In-Line)		IP66/IP67	UL94 V-0		Push-Twist	Backshell	12	Shielded	Zinc Die Cast	Polybutylene Terephthalate (PBT)	Nickel		Silver	Nickel Zinc Die Cast	Metal	0.551 in	17 mm	14 mm	0.669 in	125 VAC	7 A	Screw
TE Intercontec AKA021N00750200000	Circular		Contacts Not Included	M23-12	-20 C	130 °C	Receptacle Housing	Keyed	Free Hanging (In-Line)	1 Backshell 1 Cable Clamp 1 Connector	IP66/IP67	UL94 V-0	Silver	Push-Twist	Backshell Cable Clamp	12	Shielded	Zinc Die Cast	Polybutylene Terephthalate (PBT)	Nickel	For Male Pins
TE Intercontec AKA020N00090200000	Circular		Contacts Not Included	M23-12	-20 C	130 °C	Receptacle Housing	Keyed	Free Hanging (In-Line)	1 Backshell 1 Cable Clamp 1 Connector	IP66/IP67	UL94 V-0	Silver	Push-Twist	Backshell Cable Clamp	12	Shielded	Zinc Die Cast	Polybutylene Terephthalate (PBT)	Nickel	For Male Pins

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 18.80
		10	$ 17.89

Description

General part information

AKA02 Series

12 Position Circular Connector Plug, Female Sockets Screw
