APTF1616SURKCGKSYKC

Active

Kingbright

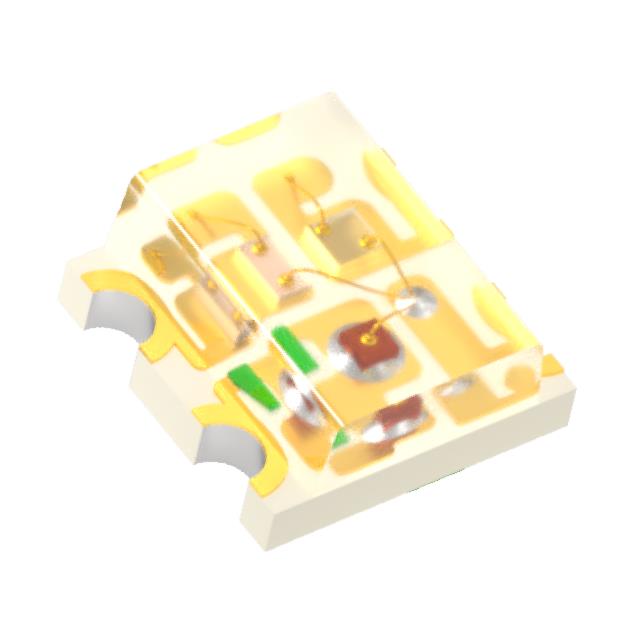

LED GREEN/RED/YELLOW CLEAR 4SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APTF1616SURKCGKSYKC

Active

Kingbright

LED GREEN/RED/YELLOW CLEAR 4SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APTF1616SURKCGKSYKC

Color	Red, Yellow, Green
Configuration	Common Anode
Current - Test	20 mA, 20 mA, 20 mA
Height (Max) [Max]	0.9 mm
Lens Color	Colorless
Lens Size [x]	1.1 mm
Lens Size [y]	1.6 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	55 mcd, 120 mcd, 250 mcd
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	1.6 mm
Supplier Device Package	4-SMD
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	1.95 V, 2.1 V, 2 V
Wavelength - Dominant	570 nm, 590 nm, 630 nm
Wavelength - Peak	590 nm, 574 nm, 650 nm

APTF1616 Series

Part	Color	Package / Case	Lens Transparency	Lens Color	Size / Dimension [x]	Size / Dimension [y]	Lens Style	Mounting Type	Lens Size [x]	Lens Size [y]	Current - Test	Height (Max) [Max]	Wavelength - Peak	Millicandela Rating	Configuration	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Viewing Angle	Package / Case	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]
Kingbright APTF1616SURKCGKSYKC	Green Red Yellow	4-SMD No Lead	Clear	Colorless	1.6 mm	1.6 mm	Rectangle with Flat Top	Surface Mount	1.1 mm	1.6 mm	20 mA 20 mA 20 mA	0.9 mm	574 nm 590 nm 650 nm	55 mcd 120 mcd 250 mcd	Common Anode	570 nm 590 nm 630 nm	1.95 V 2 V 2.1 V	4-SMD	120 °
Kingbright APTF1616QBDSURKCGKC	Blue Green Red		Clear	Colorless	1.6 mm	1.6 mm	Rectangle with Flat Top	Surface Mount	1.2 mm	1.25 mm		0.9 mm			Common Anode	470 nm 570 nm 630 nm		4-SMD	120 °	0606 1616 Metric	574 nm	468 nm	650 nm	2.1 V	3.3 V	1.95 V	250 mcd	80 mcd	55 mcd	20 mA	20 mA	20 mA
Kingbright APTF1616SEKJ3ZGKQBKC	Blue Green Red		Clear	Colorless	1.6 mm	1.6 mm	Rectangle with Flat Top	Surface Mount	1.2 mm	1.6 mm		0.9 mm	460 nm 515 nm 640 nm		Common Cathode	465 nm 525 nm 625 nm		4-SMD	120 °	0606 1616 Metric				3.3 V	3.3 V	2.2 V	350 mcd	70 mcd	300 mcd	20 mA	20 mA	20 mA
Kingbright APTF1616SEEZGKQBKC	Blue Green Red		Clear	Colorless	1.6 mm	1.6 mm	Rectangle with Flat Top	Surface Mount	1.2 mm	1.6 mm		0.9 mm			Common Anode	465 nm 525 nm 621 nm	2 V 3.3 V 3.3 V	4-SMD	120 °	0606 1616 Metric	515 nm	460 nm	630 nm				110 mcd	70 mcd	280 mcd	20 mA	20 mA	20 mA
Kingbright APTF1616SEEZGQBDC	Blue Green Red		Clear	Colorless	1.6 mm	1.6 mm	Rectangle with Flat Top	Surface Mount	1.2 mm	1.6 mm		0.9 mm			Common Anode	465 nm 525 nm 621 nm	2 V 3.3 V 3.3 V	4-SMD	120 °	0606 1616 Metric	515 nm	460 nm	630 nm				110 mcd	70 mcd	280 mcd	20 mA	20 mA	20 mA
Kingbright APTF1616LSEKJ3ZGKQBC	Blue Green Red		Clear	Colorless	1.6 mm	1.6 mm	Rectangle with Flat Top	Surface Mount	1.2 mm	1.6 mm		0.9 mm	460 nm 515 nm 640 nm		Common Cathode	465 nm 525 nm 625 nm		4-SMD	120 °	0606 1616 Metric				2.7 V	2.7 V	1.8 V	40 mcd	14 mcd	50 mcd	2 mA	2 mA	2 mA
Kingbright APTF1616LSEEZGKQBKC	Blue Green Red		Clear	Colorless	1.6 mm	1.6 mm	Rectangle with Flat Top	Surface Mount	1.2 mm	1.6 mm		0.9 mm			Common Anode	465 nm 525 nm 621 nm		4-SMD	120 °	0606 1616 Metric	515 nm	460 nm	630 nm	2.7 V	2.7 V	1.8 V				2 mA	2 mA	2 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.03
		10	$ 0.65
		100	$ 0.48
		500	$ 0.44
		1000	$ 0.37
	Digi-Reel®	1	$ 1.03
		10	$ 0.65
		100	$ 0.48
		500	$ 0.44
		1000	$ 0.37
	Tape & Reel (TR)	2000	$ 0.35
		6000	$ 0.34
		10000	$ 0.33

Description

General part information

APTF1616 Series

Green, Red, Yellow 570nm Green, 630nm Red, 590nm Yellow LED Indication - Discrete 2.1V Green, 1.95V Red, 2V Yellow 4-SMD, No Lead
