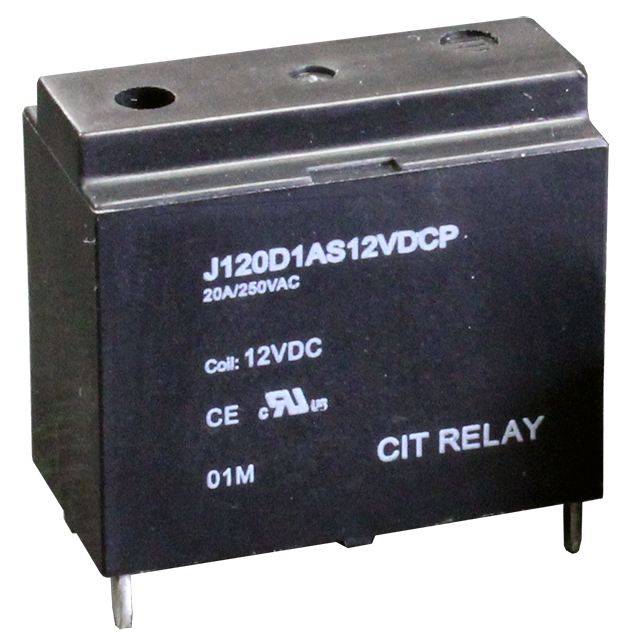

J120D1AS12VDCP

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPST 20A 12V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPST 20A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Coil Type	Contact Rating (Current)	Load - Max Switching	Switching Voltage [Max]	Contact Form	Must Operate Voltage	Termination Style	Seal Rating	Coil Resistance	Contact Material	Relay Type	Mounting Type	Must Release Voltage	Release Time	Coil Voltage	Coil Current	Termination Style
CIT Relay and Switch J120D1AS12VDCP	55 °C	-30 ░C	20 ms	Non Latching	20 A	6000 VA	300 VAC	SPST-NO (1 Form A)	9 VDC	PC Pin	Sealed - Fully	160 Ohms	Silver Tin Oxide (AgSnO)	General Purpose	Through Hole	1.2 VDC	10 ms	12 VDC	75 mA
CIT Relay and Switch J120D1AS6VDCP	55 °C	-30 ░C	20 ms	Non Latching	20 A	6000 VA	300 VAC	SPST-NO (1 Form A)	4.5 VDC	PC Pin	Sealed - Fully	40 Ohms	Silver Tin Oxide (AgSnO)	General Purpose	Through Hole	0.6 VDC	10 ms		150 mA
CIT Relay and Switch J120D1AC24VDC	55 °C	-30 ░C	20 ms	Non Latching	20 A	6000 VA	300 VAC	SPST-NO (1 Form A)	18 VDC	PC Pin Quick Connect		640 Ohms	Silver Tin Oxide (AgSnO)	General Purpose	Through Hole	2.4 VDC	10 ms	24 VDC	37.5 mA	0.25 in
CIT Relay and Switch J120D1AC12VDC	55 °C	-30 ░C	20 ms	Non Latching	20 A	6000 VA	300 VAC	SPST-NO (1 Form A)	9 VDC	PC Pin Quick Connect		160 Ohms	Silver Tin Oxide (AgSnO)	General Purpose	Through Hole	1.2 VDC	10 ms	12 VDC	75 mA	0.25 in
CIT Relay and Switch J120D1AS24VDCP	55 °C	-30 ░C	20 ms	Non Latching	20 A	6000 VA	300 VAC	SPST-NO (1 Form A)	18 VDC	PC Pin	Sealed - Fully	640 Ohms	Silver Tin Oxide (AgSnO)	General Purpose	Through Hole	2.4 VDC	10 ms	24 VDC	37.5 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
