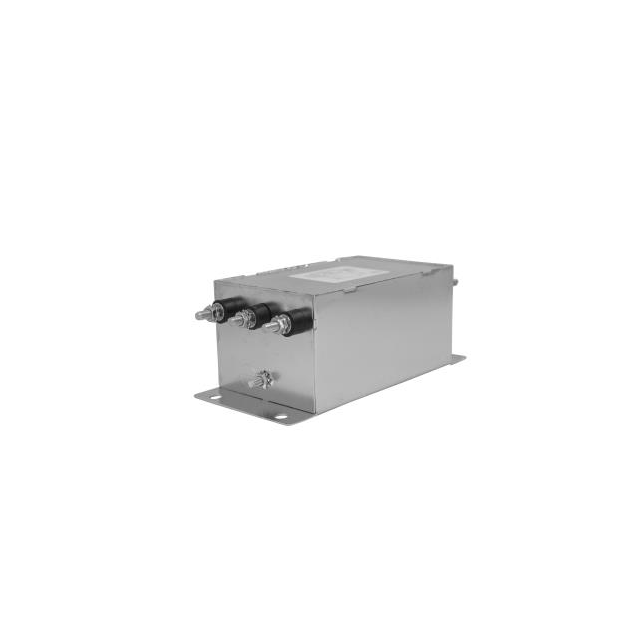

RP359-150-10-C

Active

Astrodyne TDI

LINE FILTER 520VAC 150A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RP359-150-10-C

Active

Astrodyne TDI

LINE FILTER 520VAC 150A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP359-150-10-C

Applications	General Purpose
Approval Agency	SEMKO, cURus, ENEC, CE
Configuration	Three Stage
Current	150 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Block
Voltage - Rated AC	520 V
Voltage - Rated AC (Phase to Ground/Neutral)	3.5 kV

RP359 Series

Part	Frequency - Operating [Max]	Frequency - Operating [Min]	Termination Style	Mounting Type	Configuration	Approval Agency	Filter Type	Applications	Voltage - Rated AC (Phase to Ground/Neutral)	Operating Temperature [custom]	Current	Voltage - Rated AC
Astrodyne TDI RP359-180-10-W	60 Hz	50 Hz	Wire Leads	Chassis Mount	Three Stage	CE cURus ENEC SEMKO	Three Phase (Delta)	General Purpose	3.5 kV	-25 °C 100 °C	180 A	520 V
Astrodyne TDI RP359-1000-0-B	60 Hz	50 Hz	Terminal Post	Chassis Mount	Three Stage	CE cURus ENEC SEMKO	Three Phase (Delta)	General Purpose	3.5 kV	-25 °C 100 °C	1 kA	520 V
Astrodyne TDI RP359-400-0-B	60 Hz	50 Hz	Terminal Post	Chassis Mount	Three Stage	CE cURus ENEC SEMKO	Three Phase (Delta)	General Purpose	3.5 kV	-25 °C 100 °C	400 A	520 V
Astrodyne TDI RP359-800-2000-B	60 Hz	50 Hz	Terminal Post	Chassis Mount	Three Stage	CE cURus ENEC SEMKO	Three Phase (Delta)	General Purpose	3.5 kV	-25 °C 100 °C	800 A	520 V
Astrodyne TDI RP359-1000-1000-B	60 Hz	50 Hz	Terminal Post	Chassis Mount	Three Stage	CE cURus ENEC SEMKO	Three Phase (Delta)	General Purpose	3.5 kV	-25 °C 100 °C	1 kA	520 V
Astrodyne TDI RP359-180-100-W	60 Hz	50 Hz	Wire Leads	Chassis Mount	Three Stage	CE cURus ENEC SEMKO	Three Phase (Delta)	General Purpose	3.5 kV	-25 °C 100 °C	180 A	520 V
Astrodyne TDI RP359-400-1000-B	60 Hz	50 Hz	Terminal Post	Chassis Mount	Three Stage	CE cURus ENEC SEMKO	Three Phase (Delta)	General Purpose	3.5 kV	-25 °C 100 °C	400 A	520 V
Astrodyne TDI RP359-1600-1000-B	60 Hz	50 Hz	Terminal Post	Chassis Mount	Three Stage	CE cURus ENEC SEMKO	Three Phase (Delta)	General Purpose	3.5 kV	-25 °C 100 °C	1.6 kA	520 V
Astrodyne TDI RP359-150-10-C	60 Hz	50 Hz	Terminal Block	Chassis Mount	Three Stage	CE cURus ENEC SEMKO	Three Phase (Delta)	General Purpose	3.5 kV	-25 °C 100 °C	150 A	520 V
Astrodyne TDI RP359-600-100-B	60 Hz	50 Hz	Terminal Post	Chassis Mount	Three Stage	CE cURus ENEC SEMKO	Three Phase (Delta)	General Purpose	3.5 kV	-25 °C 100 °C	600 A	520 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 967.01

Description

General part information

RP359 Series

Three Phase (Delta) EMC/EMI Line Filter 150 A 520V 50/60Hz Three Stage Terminal Block
