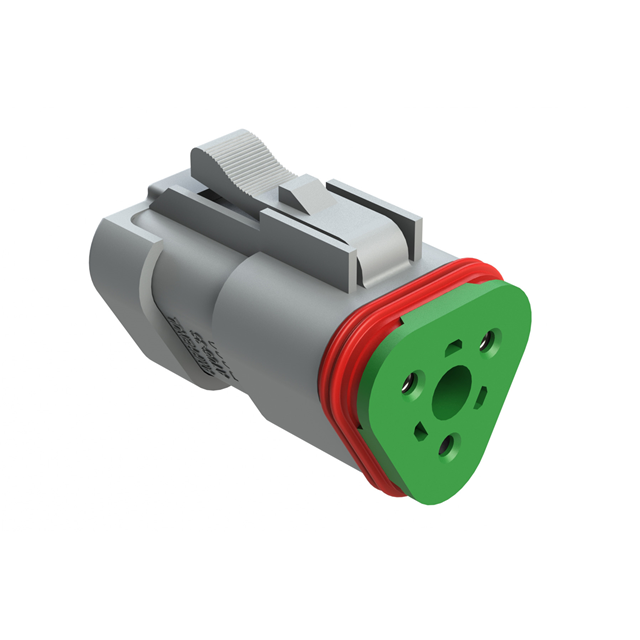

AT06-3S-R680

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 3POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAT Series Datasheet

AT06-3S-R680

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 3POS

Deep-Dive with AI

DocumentsAT Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT06-3S-R680

Color	Gray
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Resistor
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT06-3S Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Fastening Type	Number of Rows	Connector Type	Contact Termination	Color	Note	Contact Type	Features	Insulation Material
Amphenol Sine Systems Corp AT06-3S-OMWHT	-55 °C	125 °C	Free Hanging (In-Line)	Latch Lock	2	Plug	Crimp	White	Contacts Not Included	Female Socket	IP67	Polyamide (PA66) Nylon 6/6 Glass Filled
Amphenol Sine Systems Corp AT06-3S-R680	-55 °C	125 °C	Free Hanging (In-Line)	Latch Lock	2	Plug	Crimp	Gray	Contacts Not Included	Female Socket	Resistor	Thermoplastic
Amphenol Sine Systems Corp AT06-3S-OMRDRED	-55 °C	125 °C	Free Hanging (In-Line)	Latch Lock	2	Plug	Crimp	Red		Female Socket	Sealed	Polyamide (PA66) Nylon 6/6 Glass Filled
Amphenol Sine Systems Corp AT06-3S-SR02BLK	-55 °C	125 °C	Free Hanging (In-Line)	Latch Lock	2	Plug	Crimp	Black	Contacts Not Included	Female Socket	Strain Relief	Thermoplastic
Amphenol Sine Systems Corp AT06-3S-BLU	-55 °C	125 °C	Free Hanging (In-Line)	Latch Lock	2	Plug	Crimp	Blue	Contacts Not Included	Female Socket	Sealed	Thermoplastic
Amphenol Sine Systems Corp AT06-3S	-55 °C	125 °C	Free Hanging (In-Line)	Latch Lock	2	Plug	Crimp	Gray	Contacts Not Included	Female Socket	Sealed	Thermoplastic
Amphenol Sine Systems Corp AT06-3S-SB01	-55 °C	125 °C	Free Hanging (In-Line)	Latch Lock	2	Plug	Crimp		Contacts Not Included	Female Socket	IP67 Sealed	Thermoplastic
Amphenol Sine Systems Corp AT06-3S-OMBRN	-55 °C	125 °C	Free Hanging (In-Line)	Latch Lock	2	Plug	Crimp	Brown	Contacts Not Included	Female Socket	IP67	Polyamide (PA66) Nylon 6/6 Glass Filled
Amphenol Sine Systems Corp AT06-3S-GRN	-55 °C	125 °C	Free Hanging (In-Line)	Latch Lock	2	Plug	Crimp	Green	Contacts Not Included	Female Socket	Sealed	Thermoplastic
Amphenol Sine Systems Corp AT06-3S-WHT	-55 °C	125 °C	Free Hanging (In-Line)	Latch Lock	2	Plug	Crimp	White	Contacts Not Included	Female Socket	Sealed	Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.60
		10	$ 7.31
		25	$ 6.85
		50	$ 6.53
		100	$ 6.21
		300	$ 5.75
		500	$ 5.55
		1000	$ 5.28

Description

General part information

AT06-3S Series

3 Rectangular Connectors - Housings Plug Gray

Documents

Technical documentation and resources

AT Series

Datasheet
