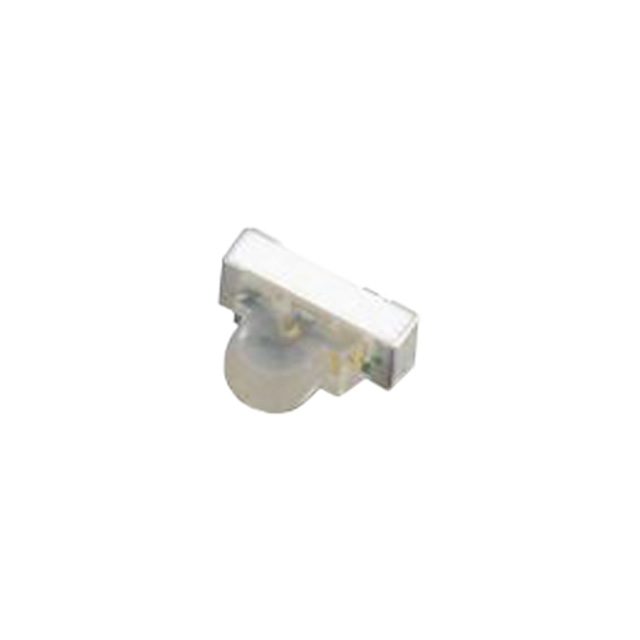

APDA1806VBC/D

Active

Kingbright

LED BLUE CLEAR SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APDA1806VBC/D

Active

Kingbright

LED BLUE CLEAR SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APDA1806VBC/D

Color	Blue
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	0.7 mm
Lens Color	Colorless
Lens Size [diameter]	0.94 mm
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating	800 mcd
Mounting Type	Surface Mount, Right Angle
Package / Case	2-SMD, No Lead
Size / Dimension [x]	1.8 mm
Size / Dimension [y]	1.5 mm
Supplier Device Package	SMD
Viewing Angle	25 °
Voltage - Forward (Vf) (Typ)	3.3 V
Wavelength - Dominant	470 nm
Wavelength - Peak	465 nm

APDA1806 Series

Part	Color	Millicandela Rating	Supplier Device Package	Lens Color	Package / Case	Lens Size [diameter]	Height (Max) [Max] [z]	Current - Test	Mounting Type	Lens Style	Viewing Angle	Voltage - Forward (Vf) (Typ)	Configuration	Lens Transparency	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Dominant	Wavelength - Peak	Wavelength - Peak [custom]	Lens Size [x]	Lens Size [y]
Kingbright APDA1806VBC/D	Blue	800 mcd	SMD	Colorless	2-SMD No Lead	0.94 mm	0.7 mm	20 mA	Surface Mount Right Angle	Round with Domed Top	25 °	3.3 V	Standard	Clear	1.5 mm	1.8 mm	470 nm	465 nm
Kingbright APDA1806SECK/J3-PRV	Red	2600 mcd	SMD	Colorless	2-SMD No Lead	0.94 mm	0.7 mm	20 mA	Surface Mount Right Angle	Round with Domed Top	25 °	2.2 V	Standard	Clear	1.5 mm	1.8 mm	625 nm		640 nm
Kingbright APDA1806SYCK	Yellow	1100 mcd	SMD	Colorless	2-SMD No Lead	0.94 mm	0.7 mm	20 mA	Surface Mount Right Angle	Round with Domed Top	25 °	2 V	Standard	Clear	1.5 mm	1.8 mm	590 nm	590 nm
Kingbright APDA1806ZGCK	Green	3200 mcd	SMD	Colorless	2-SMD No Lead	0.94 mm	0.7 mm	20 mA	Surface Mount Right Angle	Round with Domed Top	25 °	3.3 V	Standard	Clear	1.5 mm	1.8 mm	525 nm	515 nm
Kingbright APDA1806SECK		3300 mcd	SMD	Colorless	2-SMD No Lead	0.95 mm	0.7 mm	20 mA	Surface Mount Right Angle	Round with Domed Top	25 °	2.1 V	Standard	Clear	1.5 mm	1.8 mm	605 nm	610 nm
Kingbright APDA1806SURCK	Red	1200 mcd	SMD	Colorless	2-SMD No Lead	0.94 mm	0.7 mm	20 mA	Surface Mount Right Angle	Round with Domed Top	25 °	1.95 V	Standard	Clear	1.5 mm	1.8 mm	630 nm	645 nm
Kingbright APDA1806CGCK	Green	400 mcd	SMD	Colorless	2-SMD No Lead		0.7 mm	20 mA	Surface Mount Right Angle	Rectangle with Domed Top	25 °	2.1 V	Standard	Clear	1.5 mm	1.8 mm	570 nm			0.95 mm	0.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.70
		10	$ 0.46
		100	$ 0.30
		1000	$ 0.24
		2000	$ 0.22
	Digi-Reel®	1	$ 0.70
		10	$ 0.46
		100	$ 0.30
		1000	$ 0.24
		2000	$ 0.22
	Tape & Reel (TR)	4000	$ 0.22
		8000	$ 0.21
		12000	$ 0.21
		28000	$ 0.20

Description

General part information

APDA1806 Series

Blue 470nm LED Indication - Discrete 3.3V 2-SMD, No Lead
