DB0300305H1A-BT0

Active

Wakefield-Vette

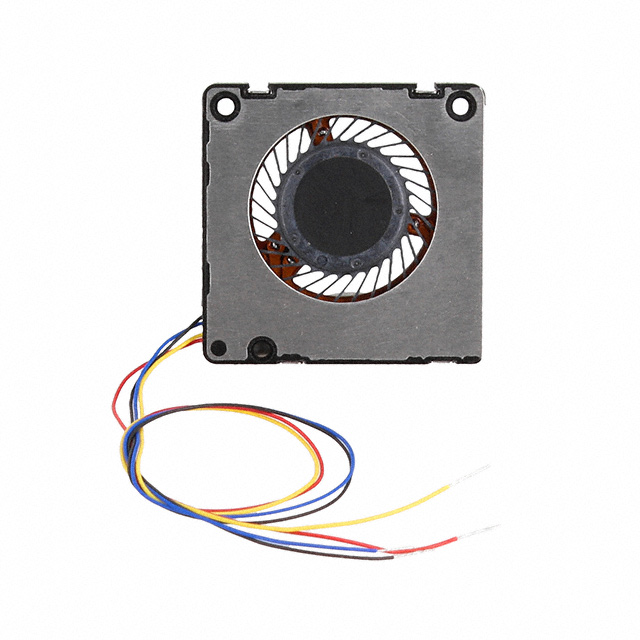

FAN BLOWER 30X3.2MM 5VDC WIRE

Search across all available documentation for this part.

Active

Wakefield-Vette

FAN BLOWER 30X3.2MM 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	DB0300305H1A-BT0

Air Flow	0.696 CFM
Air Flow	0.019 m³/min
Bearing Type	Ball
Current Rating (Amps)	100 mA
Fan Type	Blower
Features	Speed Sensor (Tach), PWM Control
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	50000 Hrs
Noise	34.1 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	0.5 W
RPM	9500 RPM
Size / Dimension [x]	30 mm
Size / Dimension [z]	30 mm
Static Pressure	0.329 in H2O
Static Pressure	82 Pa
Termination	4 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	3.5 VDC
Weight	0.001 lb
Weight	0.45 g
Width [y]	3.2 mm

Part	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Width [y]	Fan Type	Voltage Range [Max]	Voltage Range [Min]	Size / Dimension [x]	Size / Dimension [z]	Features	Power (Watts)	Termination	Air Flow	Air Flow	Static Pressure	Static Pressure	Ingress Protection	Voltage - Rated	Bearing Type	Weight	Weight	Lifetime @ Temp.	Noise	Current Rating (Amps)	RPM
Wakefield-Vette DB0300305H1A-BT0	70 °C	70 °C	-10 °C	-10 °C	3.2 mm	Blower	5.5 V	3.5 VDC	30 mm	30 mm	PWM Control Speed Sensor (Tach)	0.5 W	4 Wire Leads	0.696 CFM	0.019 m³/min	0.329 in H2O	82 Pa	IP55 - Dust Protected Water Resistant	5 V	Ball	0.001 lb	0.45 g	50000 Hrs	34.1 dB(A)	100 mA	9500 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 5VDC Square - 30mm L x 30mm H Ball 0.696 CFM (0.019m³/min) 4 Wire Leads
