1332-16-1-0500-008-1-TS

Active

CnC Tech, LLC

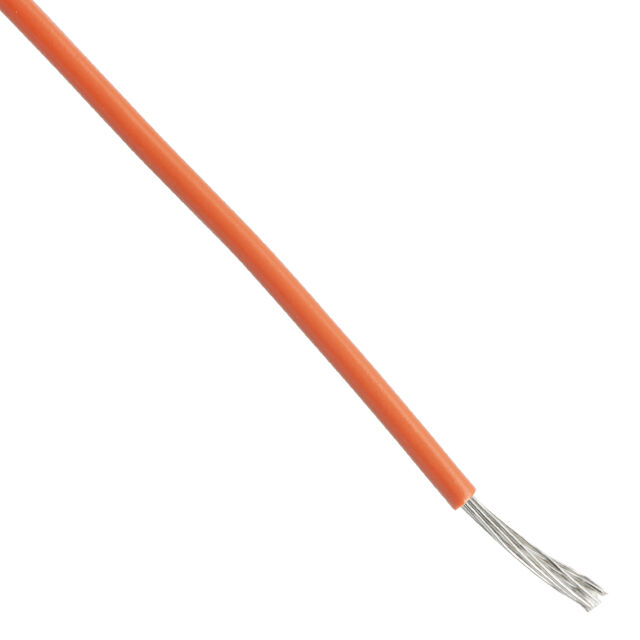

HOOK-UP STRND 16AWG ORN FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCOLOR SAMPLE CARD: FEP Insulated Hook-Up Wire Datasheet +1

1332-16-1-0500-008-1-TS

Active

CnC Tech, LLC

HOOK-UP STRND 16AWG ORN FEET

Deep-Dive with AI

DocumentsCOLOR SAMPLE CARD: FEP Insulated Hook-Up Wire Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1332-16-1-0500-008-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [diameter]	0.0114 in
Jacket (Insulation) Diameter [diameter]	2.16 mm
Jacket (Insulation) Diameter [diameter]	0.085 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket (Insulation) Thickness	0.013 in
Jacket (Insulation) Thickness	0.33 mm
Jacket Color	Orange
Length	Enter Number of Feet in Order Quantity
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-80 °C
Ratings	UL Style 1332
Spool Size	500 '
Spool Size	152.4 m
Voltage	300 V
Wire Gauge	16 AWG

1332-16 Series

Part	Conductor Material	Length [x]	Length [x]	Spool Size	Spool Size	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Cable Type	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [diameter]	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length
CnC Tech, LLC 1332-16-1-0500-012-1-TS	Copper Tinned	500 '	152.4 m	500 '	152.4 m	-80 °C	200 °C	300 V	Hook-Up	Fluorinated Ethylene-Propylene (FEP)	19 Strands	0.0114 in	16 AWG	0.013 in	0.33 mm	Gray	UL Style 1332	2.16 mm	0.085 in
CnC Tech, LLC 1332-16-1-0500-008-1-TS	Copper Tinned			500 '	152.4 m	-80 °C	200 °C	300 V	Hook-Up	Fluorinated Ethylene-Propylene (FEP)	19 Strands	0.0114 in	16 AWG	0.013 in	0.33 mm	Orange	UL Style 1332	2.16 mm	0.085 in	Enter Number of Feet in Order Quantity
CnC Tech, LLC 1332-16-1-0500-005-1-TS	Copper Tinned			500 '	152.4 m	-80 °C	200 °C	300 V	Hook-Up	Fluorinated Ethylene-Propylene (FEP)	19 Strands	0.0114 in	16 AWG	0.013 in	0.33 mm	Blue	UL Style 1332	2.16 mm	0.085 in	Enter Number of Feet in Order Quantity
CnC Tech, LLC 1332-16-1-0500-002-1-TS	Copper Tinned			500 '	152.4 m	-80 °C	200 °C	300 V	Hook-Up	Fluorinated Ethylene-Propylene (FEP)	19 Strands	0.0114 in	16 AWG	0.013 in	0.33 mm		UL Style 1332	2.16 mm	0.085 in	Enter Number of Feet in Order Quantity
CnC Tech, LLC 1332-16-1-0500-003-1-TS	Copper Tinned			500 '	152.4 m	-80 °C	200 °C	300 V	Hook-Up	Fluorinated Ethylene-Propylene (FEP)	19 Strands	0.0114 in	16 AWG	0.013 in	0.33 mm	Yellow	UL Style 1332	2.16 mm	0.085 in	Enter Number of Feet in Order Quantity

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 1.70
		2	$ 1.63
		3	$ 1.58
		5	$ 1.52
		7	$ 1.49
		10	$ 1.45
		25	$ 1.36
		50	$ 1.29
		100	$ 1.23

Description

General part information

1332-16 Series

16 AWG Hook-Up Wire 19/0.0114" Orange 300V Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources

COLOR SAMPLE CARD: FEP Insulated Hook-Up Wire

Datasheet

Color Card before Date Code 22/03

Datasheet
