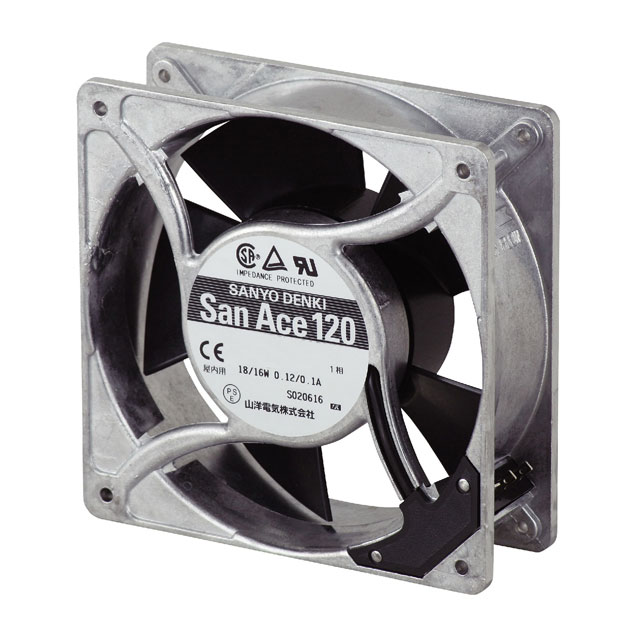

109S408UL

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 200VAC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 200VAC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	109S408UL

Air Flow	2.67 mł/min
Air Flow	95.4 CFM
Approval Agency	TUV, PSE, UL, CE
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	25000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	43 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	12 W
RPM	3100 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	65.7 Pa
Static Pressure	0.264 in H2O
Termination	3 Wire Leads
Voltage - Rated	200 VAC
Weight	589.7 g
Weight	1.3 lbs
Width [y]	38 mm

Part	Voltage - Rated	Air Flow	Air Flow	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Noise	Power (Watts)	Static Pressure	Static Pressure	Approval Agency	Fan Type	Material - Blade	Material - Frame	Features	Termination	Lifetime @ Temp.	Weight	Weight	RPM	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]
Sanyo Denki America Inc. 109S408UL	200 VAC	2.67 mł/min	95.4 CFM	38 mm	120 mm	120 mm	43 dB	12 W	65.7 Pa	0.264 in H2O	CE PSE TUV UL	Tubeaxial	Plastic	Aluminum	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	25000 Hrs	589.7 g	1.3 lbs	3100 RPM	-10 °C	-10 °C	60 °C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 200VAC Square - 120mm L x 120mm H 95.4 CFM (2.67m³/min) 3 Wire Leads
