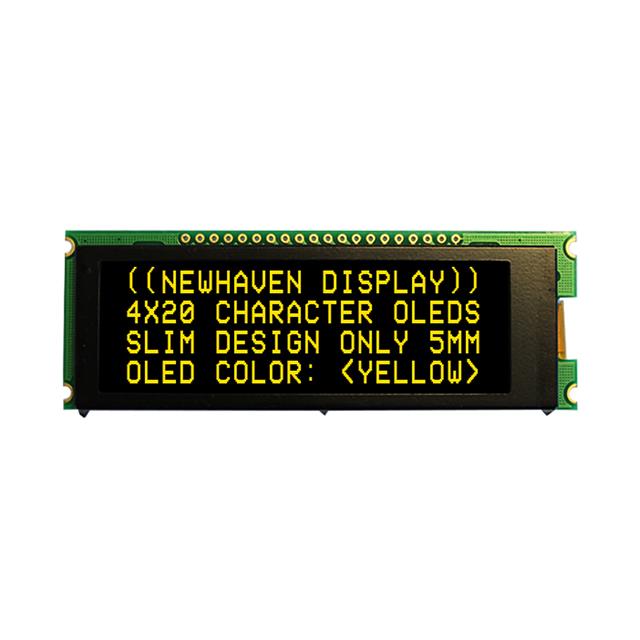

NHD-0420CW-AY3

Obsolete

Newhaven Display Intl

OLED MODULE 80DIG 20 X 4 PASSIVE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NHD-0420CW-AY3

Obsolete

Newhaven Display Intl

OLED MODULE 80DIG 20 X 4 PASSIVE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-0420CW-AY3

Background Color	Black
Character Format [x]	5 Dots
Character Format [y]	8 Dots
Character Size [y]	2.97 mm
Character Size [z]	4.77 mm
Controller Type	US2066
Display Format [x]	20
Display Format [y]	4
Display Mode	Passive
Display Type	OLED
Dot Size [x]	0.57 mm
Dot Size [y]	0.57 mm
Interface	I2C, 8-Bit, Parallel, SPI
Number of Characters	80
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline L x W x H [x]	92 mm
Outline L x W x H [y]	31.5 mm
Outline L x W x H [z]	2.5 mm
Text Color	Yellow
Viewing Area [x]	72.42 mm
Viewing Area [y]	22.82 mm
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.4 V

NHD-0420 Series

Part	Outline L x W x H [x]	Outline L x W x H [z]	Outline L x W x H [y]	Operating Temperature [Max]	Operating Temperature [Min]	Display Type	Character Format [y]	Character Format [x]	Dot Size [y]	Dot Size [x]	Background Color	Viewing Area [x]	Viewing Area [y]	Text Color	Voltage - Supply [Min]	Voltage - Supply [Max]	Interface	Number of Characters	Display Mode	Character Size [y]	Character Size [z]	Display Format [y]	Display Format [x]	Backlight	Controller Type	Character Size [x]	Dot Size [z]
Newhaven Display Intl NHD-0420CW-AR3	92 mm	2.5 mm	31.5 mm	85 °C	-40 °C	OLED	8 Dots	5 Dots	0.57 mm	0.57 mm	Black	72.42 mm	22.82 mm	Red	2.4 V	5.5 V	8-Bit I2C Parallel SPI	80	Passive	2.97 mm	4.77 mm	4	20
Newhaven Display Intl NHD-0420D3Z-NSW-BBW-V3	98 mm	13.5 mm	60 mm	70 °C	-20 C	STN - Super-Twisted Nematic	8 Dots	5 Dots	0.55 mm	0.55 mm	Blue	76 mm	25.2 mm	White	4.7 V	5.5 V	I2C RS-232 SPI	80	Transmissive			4	20	LED - White	PIC16F699
Newhaven Display Intl NHD-0420CW-AG3	92 mm	2.5 mm	31.5 mm	85 °C	-40 °C	OLED	8 Dots	5 Dots	0.57 mm	0.57 mm	Black	72.42 mm	22.82 mm	Green	2.4 V	5.5 V	8-Bit I2C Parallel SPI	80	Passive	2.97 mm	4.77 mm	4	20		US2066
Newhaven Display Intl NHD-0420D3Z-FL-GBW-V3	98 mm	13.5 mm	60 mm	70 °C	-20 C	STN - Super-Twisted Nematic	8 Dots	5 Dots	0.55 mm	0.55 mm	Green	76 mm	25.2 mm	Blue	4.7 V	5.5 V	I2C RS-232 SPI	80	Transflective			4	20		PIC16F698
Newhaven Display Intl NHD-0420DZ-FL-YBW	98 mm	13.6 mm	60 mm	70 °C	-20 C	STN - Super-Twisted Nematic	8 Dots	5 Dots	0.55 mm	0.55 mm	Green	77 mm	25.2 mm	Gray	4.5 V	5.5 V	Parallel	80	Transflective			4	20		SPLC780D ST7066U
Newhaven Display Intl NHD-0420CW-AY3	92 mm	2.5 mm	31.5 mm	85 °C	-40 °C	OLED	8 Dots	5 Dots	0.57 mm	0.57 mm	Black	72.42 mm	22.82 mm	Yellow	2.4 V	5.5 V	8-Bit I2C Parallel SPI	80	Passive	2.97 mm	4.77 mm	4	20		US2066
Newhaven Display Intl NHD-0420E2Z-FL-GBW	146 mm	14.5 mm	62.5 mm	70 °C	-20 C	STN - Super-Twisted Nematic	8 Dots	5 Dots	1.1 mm	0.92 mm	Green	123 mm	42.5 mm	Blue	4.7 V	5.5 V	Parallel	80	Transflective	4.84 mm	9.22 mm	4	20		KS0066U
Newhaven Display Intl NHD-0420AZ-FL-GBW-33V3	77 mm	14.5 mm	47 mm	70 °C	-20 C	STN - Super-Twisted Nematic	8 Dots	5 Dots	0.46 mm	0.42 mm	Green	60 mm	22 mm	Blue	3 V	3.6 V	Parallel	80	Transflective	2.3 mm	4.03 mm	4	20		SPLC780D ST7066U
Newhaven Display Intl NHD-0420H1Z-FSW-GBW	79 mm	13 mm	36 mm	70 °C	-20 C	STN - Super-Twisted Nematic	8 Dots	5 Dots	0.43 mm		White	60 mm	28 mm	Gray	4.7 V	5.5 V	Parallel	80	Transflective	2.35 mm		4	20	LED - White	SPLC780D ST7066U	5.15 mm	0.6 mm
Newhaven Display Intl NHD-0420DZW-AY5	98 mm	10 mm	60 mm	80 C	-40 °C	OLED	8 Dots	5 Dots	0.55 mm	0.54 mm	Black	77 mm	25.2 mm	Yellow	4.8 V	5.3 V	Parallel/Serial	80	Passive	4.75 mm		4	20	Without Backlight		2.9 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.27

Description

General part information

NHD-0420 Series

Character Display Module Passive 5 x 8 Dots OLED Parallel, 8-Bit, I2C, SPI 92.00mm x 31.50mm x 2.50mm
