1218818
ActiveSICK, Inc.
SENSOR PROXIMITY 1.5M NPN/PNP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1218818
ActiveSICK, Inc.
SENSOR PROXIMITY 1.5M NPN/PNP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1218818 |
|---|---|
| Adjustment Type | Adjustable |
| Cable Length | 78.74 in |
| Cable Length | 2 m |
| Connection Method | Cable |
| Ingress Protection | IP67, IP66 |
| Light Source | Infrared (850nm) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | NPN/PNP, Push-Pull |
| Response Time | 500 µs |
| Sensing Distance [Max] | 59.055 in, 1.5 m |
| Sensing Distance [Min] | 0.394 in, 10 mm |
| Sensing Method | Proximity |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 337.50 | |
Description
General part information

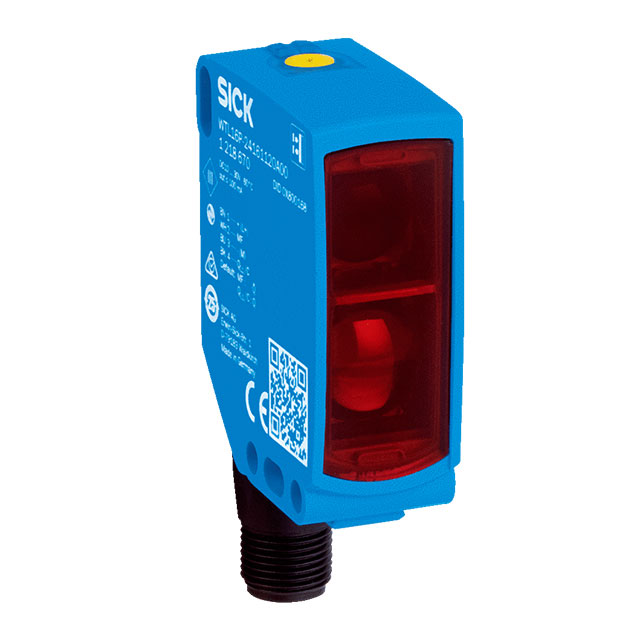

WTB16I Series
Proximity Optical Sensor 0.394" ~ 59.055" (10mm ~ 1.5m) Push-Pull, NPN/PNP
