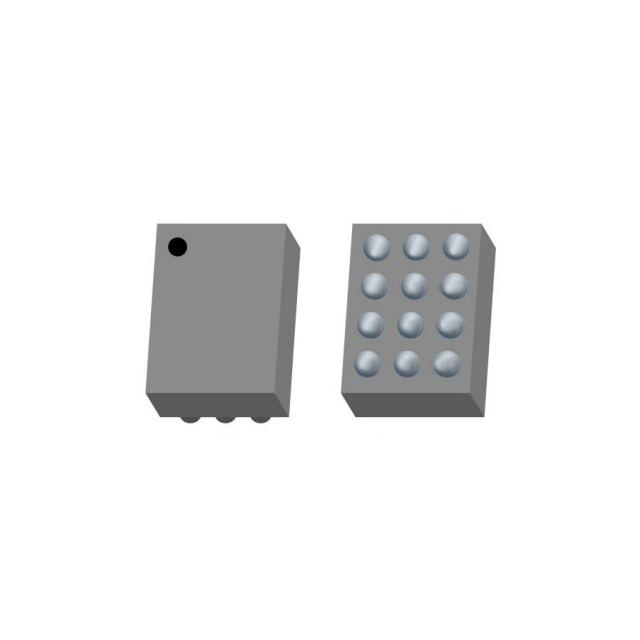

GLF78131
ActiveGLF Integrated Power
3 CHANNEL NANO IQSMART LOAD SWIT
Deep-Dive with AI
Search across all available documentation for this part.
GLF78131
ActiveGLF Integrated Power
3 CHANNEL NANO IQSMART LOAD SWIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GLF78131 |
|---|---|
| Current - Output (Max) [Max] | 1.5 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Package / Case | 12-UFBGA, WLCSP |
| Rds On (Typ) | 60 mOhm |
| Supplier Device Package | 12-WLCSP |
| Supplier Device Package [x] | 1.67 |
| Supplier Device Package [y] | 1.27 |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 1.18 | |
| 20 | $ 1.04 | |||
| 30 | $ 0.98 | |||
| 100 | $ 0.74 | |||
| 250 | $ 0.63 | |||
| 500 | $ 0.60 | |||
| 1000 | $ 0.46 | |||
| 3000 | $ 0.43 | |||
| 6000 | $ 0.41 | |||
Description
General part information
GLF78131 Series
Power Switch/Driver P-Channel 1.5A 12-WLCSP (1.67x1.27)
Documents
Technical documentation and resources
No documents available
