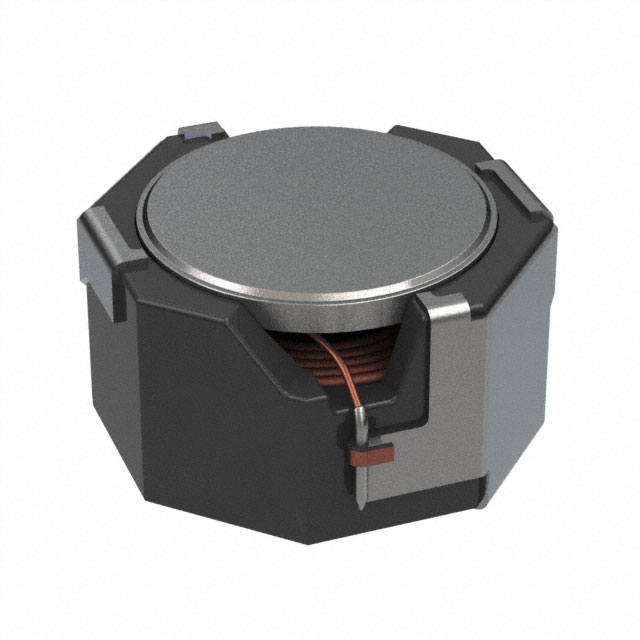

MDH12577C-220MA=P3

Active

Murata Power Solutions Inc.

FIXED IND 22UH 3A 33 MOHM SMD

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

FIXED IND 22UH 3A 33 MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Type	Shielding	Current Rating (Amps)	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Inductance Frequency - Test	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Tolerance	Inductance	Current - Saturation (Isat)	DC Resistance (DCR)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Material - Core
Murata Power Solutions Inc. MDH12577C-220MA=P3	Drum Core Wirewound	Unshielded	3 A	Surface Mount	0.492 "	12.5 mm	12.8 mm	0.504 "	Nonstandard	100 kHz	-55 °C	150 °C	AEC-Q200	20 %	22 µH	4.9 A	33 mOhm	8 mm	0.315 in	Ferrite
Murata Power Solutions Inc. MDH12577C-150MA=P3	Drum Core Wirewound	Unshielded	3.6 A	Surface Mount	0.492 "	12.5 mm	12.8 mm	0.504 "	Nonstandard	100 kHz	-55 °C	150 °C	AEC-Q200	20 %	15 µH	5.7 A	22 mOhm	8 mm	0.315 in	Ferrite
Murata Power Solutions Inc. MDH12577C-471MA=P3	Drum Core Wirewound	Unshielded	700 mA	Surface Mount	0.492 "	12.5 mm	12.8 mm	0.504 "	Nonstandard	100 kHz	-55 °C	150 °C	AEC-Q200	20 %		1 A		8 mm	0.315 in	Ferrite
Murata Power Solutions Inc. MDH12577C-331MA=P3	Drum Core Wirewound	Unshielded	900 mA	Surface Mount	0.492 "	12.5 mm	12.8 mm	0.504 "	Nonstandard	100 kHz	-55 °C	150 °C	AEC-Q200	20 %	330 µH	1.3 A	410 mOhm	8 mm	0.315 in	Ferrite
Murata Power Solutions Inc. MDH12577C-4R7NA=P3	Drum Core Wirewound	Unshielded	5.4 A	Surface Mount	0.492 "	12.5 mm	12.8 mm	0.504 "	Nonstandard	100 kHz	-55 °C	150 °C	AEC-Q200	30 %	4.7 ÁH	11 A	9 mOhm	8 mm	0.315 in	Ferrite

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22 µH Unshielded Drum Core, Wirewound Inductor 3 A 33mOhm Nonstandard
