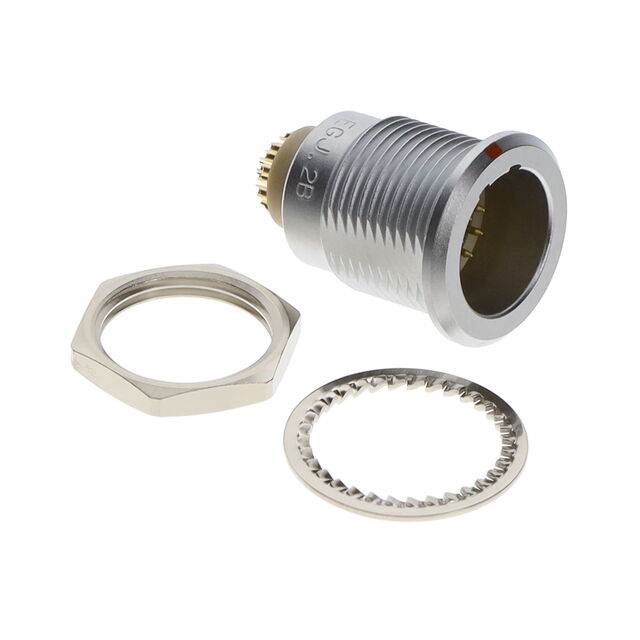

EGJ.2B.314.CLA

Active

LEMO

CONN RCPT MALE 14P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EGJ.2B.314.CLA

Active

LEMO

CONN RCPT MALE 14P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EGJ.2B.314.CLA

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	6.5 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	14
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	J
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	314
Shielding	Shielded

EGJ.2B Series

Part	Primary Material	Connector Type	Contact Finish - Mating	Fastening Type	Insert Material	Orientation	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Mounting Feature	Shell Finish	Color	Current Rating (Amps)	Contact Material	Material Flammability Rating	Shielding	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Termination	Number of Positions
LEMO EGJ.2B.305.CLA	Metal	Male Pins Receptacle	Gold	Push-Pull	Polyetheretherketone (PEEK)	J	Brass	1 µm	39.4 µin	IP50	Bulkhead - Rear Side Nut	Chrome	Silver	14 A	Brass	UL94 V-0	Shielded	305	-55 °C	250 °C
LEMO EGJ.2B.314.CLA	Metal	Male Pins Receptacle	Gold	Push-Pull	Polyetheretherketone (PEEK)	J	Brass	1 µm	39.4 µin	IP50	Bulkhead - Rear Side Nut	Chrome	Silver	6.5 A	Brass	UL94 V-0	Shielded	314	-55 °C	250 °C	14
LEMO EGJ.2B.312.CLA	Metal	Male Pins Receptacle	Gold	Push-Pull	Polyetheretherketone (PEEK)	J	Brass	1 µm	39.4 µin	IP50	Bulkhead - Rear Side Nut	Chrome	Silver	7 A	Brass	UL94 V-0	Shielded	312	-55 °C	250 °C	12
LEMO EGJ.2B.308.CLA	Metal	Male Pins Receptacle	Gold	Push-Pull	Polyetheretherketone (PEEK)	J	Brass	1 µm	39.4 µin	IP50	Bulkhead - Rear Side Nut	Chrome	Silver	10 A	Brass	UL94 V-0	Shielded	308	-55 °C	250 °C	8
LEMO EGJ.2B.319.CLDY	Metal	Male Pins Receptacle	Gold	Push-Pull	Polyetheretherketone (PEEK)	J	Brass	1 µm	39.4 µin	IP50	Bulkhead - Rear Side Nut	Chrome	Silver	5 A	Brass	UL94 V-0	Shielded	319	-55 °C	250 °C	19	Panel Mount Through Hole	Solder
LEMO EGJ.2B.302.CYC	Metal	Male Pins Receptacle	Gold	Push-Pull	Polyetheretherketone (PEEK)	J	Brass	1 µm	39.4 µin	IP50	Bulkhead - Rear Side Nut	Chrome	Silver	25 A	Brass	UL94 V-0	Shielded	302	-55 °C	250 °C	2		Crimp
LEMO EGJ.2B.316.CLA	Metal	Male Pins Receptacle	Gold	Push-Pull	Polyetheretherketone (PEEK)	J	Brass	1 µm	39.4 µin	IP50	Bulkhead - Rear Side Nut	Chrome	Silver	6 A	Brass	UL94 V-0	Shielded	316	-55 °C	250 °C				16
LEMO EGJ.2B.318.CLA	Metal	Male Pins Receptacle	Gold	Push-Pull	Polyetheretherketone (PEEK)	J	Brass	1 µm	39.4 µin	IP50	Bulkhead - Rear Side Nut	Chrome	Silver	5.5 Amps	Brass	UL94 V-0	Shielded	318	-55 °C	250 °C	18
LEMO EGJ.2B.310.CYC	Metal	Male Pins Receptacle	Gold	Push-Pull	Polyetheretherketone (PEEK)	J	Brass	1 µm	39.4 µin	IP50	Bulkhead - Rear Side Nut	Chrome	Silver	8 A	Brass	UL94 V-0	Shielded	310	-55 °C	250 °C	10		Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 69.52
		10	$ 63.80
		25	$ 61.34
		50	$ 59.30
		100	$ 56.03

Description

General part information

EGJ.2B Series

14 Position Circular Connector Receptacle, Male Pins Solder Cup
