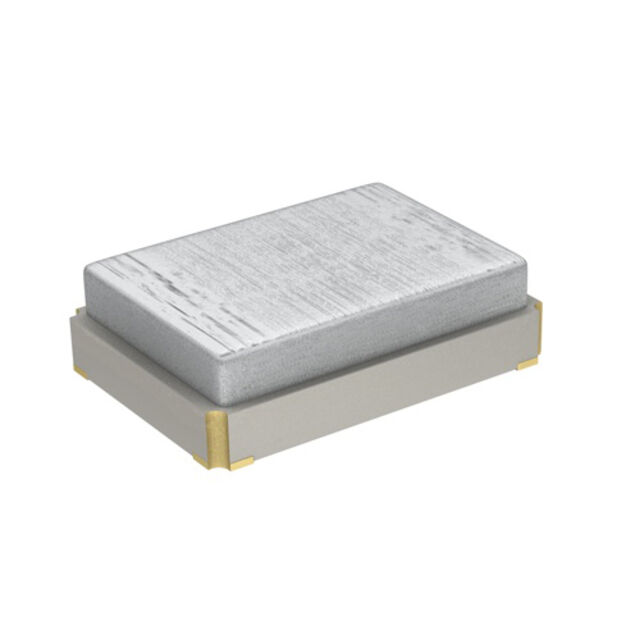

XRCGB24M000FAN00R0

Active

Murata Power Solutions Inc.

CRYSTAL 24.0000MHZ 6PF SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCrystal Units/Oscillators Catalog Datasheet

XRCGB24M000FAN00R0

Active

Murata Power Solutions Inc.

CRYSTAL 24.0000MHZ 6PF SMD

Deep-Dive with AI

DocumentsCrystal Units/Oscillators Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XRCGB24M000FAN00R0

ESR (Equivalent Series Resistance)	150 Ohms
Frequency	24 MHz
Frequency Stability	40 ppm
Frequency Tolerance	25 ppm
Height - Seated (Max) [Max]	0.7 mm
Height - Seated (Max) [Max]	0.028 in
Load Capacitance	6 pF
Mounting Type	Surface Mount
Operating Mode	Fundamental
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Package / Case	4-SMD, No Lead
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Type	MHz Crystal

XRCGB Series

...

Part	Frequency Stability	Load Capacitance	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Mode	Frequency	ESR (Equivalent Series Resistance)	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Frequency Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
Murata Power Solutions Inc. XRCGB27M000F3M14R0	40 ppm	6 pF	4-SMD No Lead	2 mm	0.063 in	1.6 mm	0.079 in	Fundamental	27 MHz	150 Ohms	MHz Crystal	-30 ░C	85 °C	Surface Mount	30 ppm	0.7 mm	0.028 in
Murata Power Solutions Inc. XRCGB32M000F1H83R0	15 ppm	9 pF	4-SMD No Lead	2 mm	0.063 in	1.6 mm	0.079 in	Fundamental	32 MHz	60 Ohms	MHz Crystal	-40 °C	85 °C	Surface Mount	10 ppm	0.7 mm	0.028 in
Murata Power Solutions Inc. XRCGB27M120F3M16R0	40 ppm	6 pF	4-SMD No Lead	2 mm	0.063 in	1.6 mm	0.079 in	Fundamental	27.12 MHz	60 Ohms	MHz Crystal	-30 ░C	85 °C	Surface Mount	30 ppm	0.7 mm	0.028 in
Murata Power Solutions Inc. XRCGB40M000F1S1CR0	10 ppm	10 pF	4-SMD No Lead	2 mm	0.063 in	1.6 mm	0.079 in	Fundamental	40 MHz	50 Ohms	MHz Crystal	-30 ░C	85 °C	Surface Mount	10 ppm	0.7 mm	0.028 in
Murata Power Solutions Inc. XRCGB25M000F1H00R0	10 ppm	6 pF	4-SMD No Lead	2 mm	0.063 in	1.6 mm	0.079 in	Fundamental	25 MHz	80 Ohm	MHz Crystal	-20 C	70 °C	Surface Mount	10 ppm	0.7 mm	0.028 in
Murata Power Solutions Inc. XRCGB26M000F2P00R0	20 ppm	6 pF	4-SMD No Lead	2 mm	0.063 in	1.6 mm	0.079 in	Fundamental	26 MHz	150 Ohms	MHz Crystal	-30 ░C	85 °C	Surface Mount	20 ppm	0.7 mm	0.028 in
Murata Power Solutions Inc. XRCGB26M000FAN00R0	25 ppm	6 pF	4-SMD No Lead	2 mm	0.063 in	1.6 mm	0.079 in	Fundamental	26 MHz	150 Ohms	MHz Crystal			Surface Mount	25 ppm	0.7 mm	0.028 in	-10 °C	158 °F
Murata Power Solutions Inc. XRCGB24M000FAN00R0	40 ppm	6 pF	4-SMD No Lead	2 mm	0.063 in	1.6 mm	0.079 in	Fundamental	24 MHz	150 Ohms	MHz Crystal			Surface Mount	25 ppm	0.7 mm	0.028 in	-10 °C	158 °F
Murata Power Solutions Inc. XRCGB32M000F3M00R0	40 ppm	6 pF	4-SMD No Lead	2 mm	0.063 in	1.6 mm	0.079 in	Fundamental	32 MHz	100 Ohms	MHz Crystal	-30 ░C	85 °C	Surface Mount	30 ppm	0.7 mm	0.028 in
Murata Power Solutions Inc. XRCGB24M000F2P00R0	20 ppm	6 pF	4-SMD No Lead	2 mm	0.063 in	1.6 mm	0.079 in	Fundamental	24 MHz	150 Ohms	MHz Crystal	-30 ░C	85 °C	Surface Mount	20 ppm	0.7 mm	0.028 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.32
		10	$ 0.26
		50	$ 0.24
		100	$ 0.21
		500	$ 0.20
		1000	$ 0.17
	Digi-Reel®	1	$ 0.32
		10	$ 0.26
		50	$ 0.24
		100	$ 0.21
		500	$ 0.20
		1000	$ 0.17
	Tape & Reel (TR)	3000	$ 0.16
		6000	$ 0.15
		15000	$ 0.15

Description

General part information

XRCGB Series

24 MHz ±25ppm Crystal 6pF 150 Ohms 4-SMD, No Lead

Documents

Technical documentation and resources

Crystal Units/Oscillators Catalog

Datasheet
