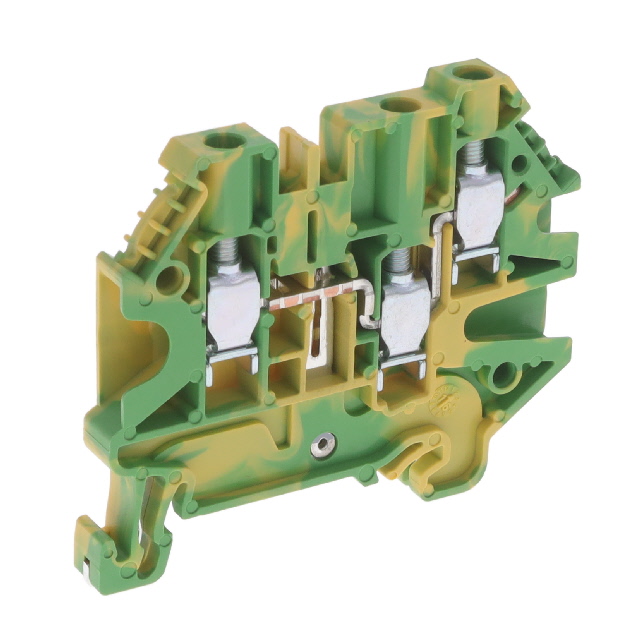

XW5G-S4.0-1.2-1
ActiveOmron Electronics Inc-EMC Div
GROUNDTB SCREW 4MM 1:2 1TIER
Deep-Dive with AI
Search across all available documentation for this part.
XW5G-S4.0-1.2-1
ActiveOmron Electronics Inc-EMC Div
GROUNDTB SCREW 4MM 1:2 1TIER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XW5G-S4.0-1.2-1 |
|---|---|
| Color | Green, Yellow |
| Material - Insulation | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Stripping Length | 9 mm |
| Terminal - Width [y] | 6 mm |
| Termination Style | Screw |
| Type | Ground, Earth |
| Voltage - IEC | 500 V |
| Voltage - UL [custom] | 300 V |
| Wire Gauge or Range - AWG [Max] | 26 AWG |
| Wire Gauge or Range - AWG [Min] | 10 AWG |
| Wire Gauge or Range - mm² [Max] | 6 mm² |
| Wire Gauge or Range - mm² [Min] | 0.14 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.78 | |
| 10 | $ 3.77 | |||
| 25 | $ 3.59 | |||
| 50 | $ 3.25 | |||
| 100 | $ 3.24 | |||
Description
General part information
XW5G-S4 Series
Terminal Block Connector 3 Position Ground, Earth Green, Yellow 10-26 AWG
Documents
Technical documentation and resources
No documents available
