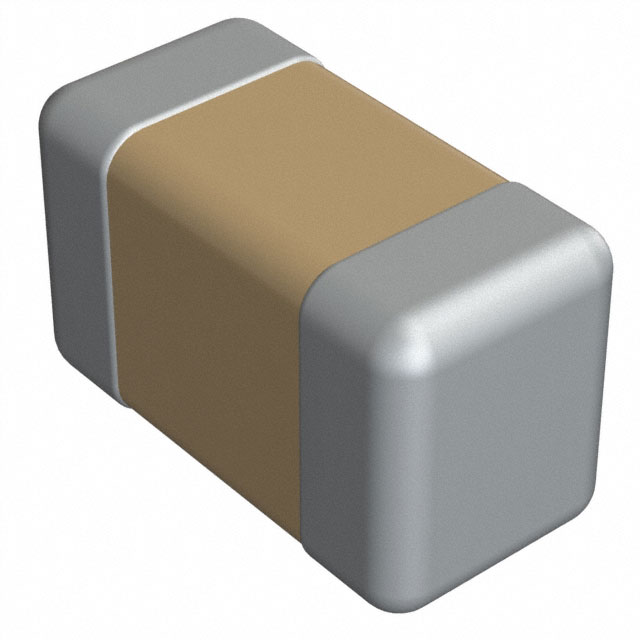

040230500472JXT
ActiveKnowles Johanson Manufacturing
CAP CER 4700PF 50V X7R 0402
Deep-Dive with AI
Search across all available documentation for this part.
040230500472JXT
ActiveKnowles Johanson Manufacturing
CAP CER 4700PF 50V X7R 0402
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 040230500472JXT |
|---|---|
| Applications | Boardflex Sensitive |
| Capacitance | 4700 pF |
| Features | Non-Magnetic, Soft Termination |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension [x] | 0.04 " |
| Size / Dimension [x] | 1.01 mm |
| Size / Dimension [y] | 0.5 mm |
| Size / Dimension [y] | 0.02 in |
| Temperature Coefficient | X7R |
| Thickness (Max) [Max] | 0.024 in |
| Thickness (Max) [Max] | 0.6 mm |
| Tolerance | 5 % |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.66 | |
| 10 | $ 0.41 | |||
| 50 | $ 0.30 | |||
| 100 | $ 0.27 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| Digi-Reel® | 1 | $ 0.66 | ||
| 10 | $ 0.41 | |||
| 50 | $ 0.30 | |||
| 100 | $ 0.27 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| Tape & Reel (TR) | 10000 | $ 0.20 | ||
Description
General part information
04023050 Series
4700 pF ±5% 50V Ceramic Capacitor X7R 0402 (1005 Metric)
