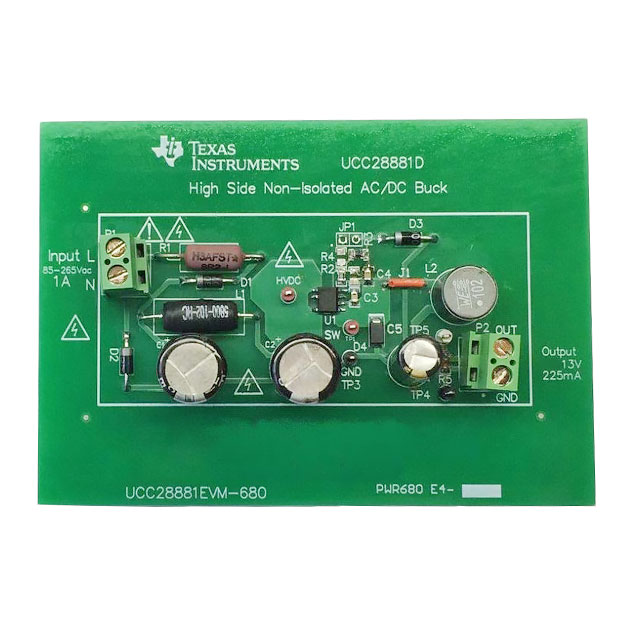

UCC28881 OFFLINE HIGH-SIDE BUCK CONVERTER EVALUATION MODULE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UCC28881EVM-680

Active

Texas Instruments

UCC28881 OFFLINE HIGH-SIDE BUCK CONVERTER EVALUATION MODULE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UCC28881EVM-680

Board Type	Fully Populated
Current - Output	225 mA
Main Purpose	Primary Side, AC/DC
Outputs and Type	Non-Isolated
Outputs and Type	1
Power - Output	2.9 W
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	UCC28881
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Output	13 V

UCC28881 Series

700-V Lowest Quiescent current off-line switcher

Part	Power (Watts)	Mounting Type	Voltage - Breakdown	Voltage - Supply (Vcc/Vdd)	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Output Isolation	Supplier Device Package	Frequency - Switching	Voltage - Start Up	Fault Protection	Duty Cycle	Package / Case [custom]	Package / Case	Package / Case [custom]	Package / Case	Outputs and Type	Outputs and Type	Utilized IC / Part	Supplied Contents	Board Type	Voltage - Output	Main Purpose	Regulator Topology	Voltage - Input [Min]	Voltage - Input [Max]	Power - Output	Current - Output
Texas Instruments UCC28881DR	4.5 W	Surface Mount	700 V	5 V	-40 °C	125 ¯C	Buck Buck-Boost Flyback	Non-Isolated	7-SOIC	62 kHz	3.9 V	Current Limiting Over Load Over Temperature Short Circuit	55 %	7	8-SOIC	3.9 mm	0.154 in
Texas Instruments UCC28881D	4.5 W	Surface Mount	700 V	5 V	-40 °C	125 ¯C	Buck Buck-Boost Flyback	Non-Isolated	7-SOIC	62 kHz	3.9 V	Current Limiting Over Load Over Temperature Short Circuit	55 %	7	8-SOIC	3.9 mm	0.154 in
Texas Instruments UCC28881EVM-680																		Non-Isolated	1	UCC28881	Board(s)	Fully Populated	13 V	AC/DC Primary Side	Buck	85 VAC	265 VAC	2.9 W	225 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 58.80

Description

General part information

UCC28881 Series

The UCC28881 integrates the controller and a 14-Ω, 700-V power MOSFET into one monolithic device. The device also integrates a high-voltage current source, enabling start up and operation directly from the rectified mains voltage. UCC28881 is the same family device of UCC28880, with higher current handling capability.

The low quiescent current of the device enables excellent efficiency. With the UCC28881 the most common converter topologies, such as buck, buck-boost and flyback can be built using a minimum number of external components.

The UCC28881 incorporates a soft-start feature for controlled start up of the power stage which minimizes the stress on the power-stage components.
