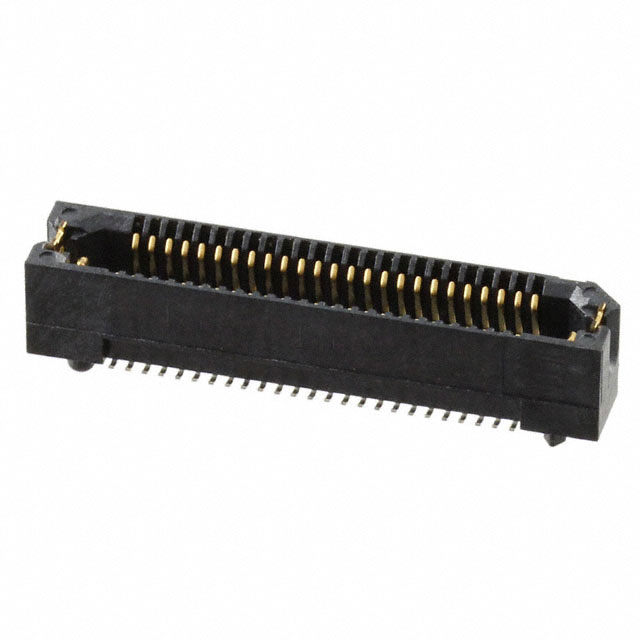

ASP-148422-01
ActiveSamtec Inc.
CONN SOCKET 50POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASP-148422-01
ActiveSamtec Inc.
CONN SOCKET 50POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASP-148422-01 |
|---|---|
| Connector Type | Socket, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Board Guide |
| Height Above Board | 0.201 in |
| Height Above Board | 5.1 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 7.90 | |
| 10 | $ 7.05 | |||
| 25 | $ 6.20 | |||
| 50 | $ 5.19 | |||
| 100 | $ 4.83 | |||
| 500 | $ 4.32 | |||
| 1000 | $ 4.29 | |||
Description
General part information
148422-01 Series
50 Position Connector Socket, Center Strip Contacts Surface Mount Gold
