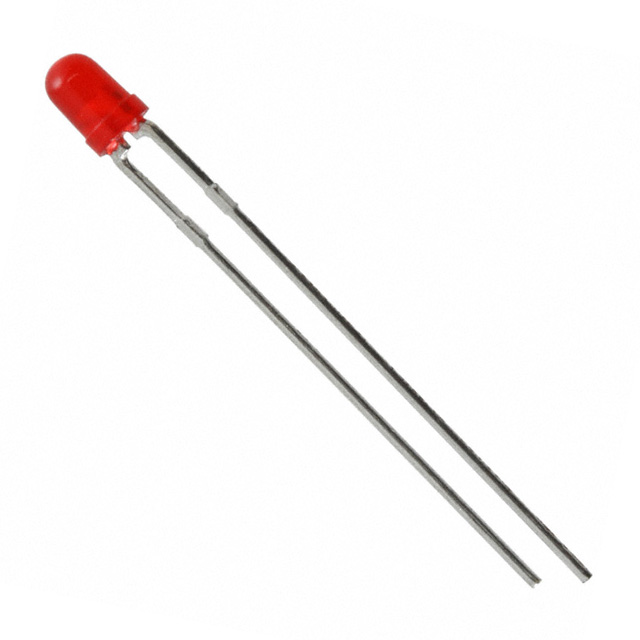

WP710A10SRD/J

Active

Kingbright

LED RED DIFFUSED T-1 T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP710A10SRD/J

Active

Kingbright

LED RED DIFFUSED T-1 T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WP710A10SRD/J

Color	Red
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	5.9 mm
Lens Color	Red
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating	1300 mcd
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension [diameter]	2.9 mm
Supplier Device Package	T-1
Viewing Angle [custom]	40 °
Voltage - Forward (Vf) (Typ)	1.85 V
Wavelength - Dominant	640 nm
Wavelength - Peak	660 nm

WP710 Series

Part	Wavelength - Dominant	Height (Max) [Max] [z]	Lens Style	Color	Millicandela Rating	Lens Size	Lens Size	Current - Test	Size / Dimension [diameter]	Viewing Angle	Wavelength - Peak	Package / Case	Voltage - Forward (Vf) (Typ)	Configuration	Supplier Device Package	Mounting Type	Lens Transparency	Lens Color	Wavelength - Peak [custom]	Viewing Angle [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength	Type	Radiant Intensity (Ie) Min @ If	Current - DC Forward (If) (Max) [Max]	Orientation
Kingbright WP710A10ZGC/G	525 nm	5.9 mm	Round with Domed Top	Green	14000 mcd	3 mm	T-1	20 mA	2.9 mm	34 °	520 nm	Radial	3.2 V	Standard	T-1	Through Hole	Clear	Colorless
Kingbright WP710A10PGC	557 nm	5.9 mm	Round with Domed Top	Green	12 mcd	3 mm	T-1	20 mA	2.9 mm	34 °	557 nm	Radial	2.25 V	Standard	T-1	Through Hole	Clear	Colorless
Kingbright WP710A10SEC/J3	625 nm	5.9 mm	Round with Domed Top	Red	5300 mcd	3 mm	T-1	20 mA	2.9 mm	30 °		Radial	2.2 V	Standard	T-1	Through Hole	Clear	Colorless	640 nm
Kingbright WP710A10LVBC/D	470 nm	5.9 mm	Round with Domed Top	Blue	450 mcd	3 mm	T-1	2 mA	2.9 mm	20 °	465 nm	Radial	2.65 V	Standard	T-1 (3mm)	Through Hole	Clear	Colorless
Kingbright WP710A10YD14V	588 nm	5.9 mm	Round with Domed Top	Yellow	11 mcd	3 mm	T-1	10.5 mA	2.9 mm		590 nm	Radial		Standard	T-1	Through Hole	Diffused	Yellow		40 °
Kingbright WP710A10SYCK/J3	590 nm	5.9 mm	Round with Domed Top	Yellow	2600 mcd	3 mm	T-1	20 mA	2.9 mm	34 °	590 nm	Radial	2 V	Standard	T-1	Through Hole	Clear	Colorless
Kingbright WP710A10LSRD	640 nm	5.9 mm	Round with Domed Top	Red	6 mcd	3 mm	T-1	2 mA	2.9 mm		655 nm	Radial	1.65 V	Standard	T-1	Through Hole	Diffused	Red		40 °
Kingbright WP710A10F3C										34 °		Radial				Through Hole					85 °C	-40 °C	940 nm	Infrared (IR)	10 mW/sr	50 mA	Top View
Kingbright WP710A10QBC/G	465 nm	5.9 mm	Round with Domed Top	Blue	2800 mcd	3 mm	T-1	20 mA	2.9 mm	20 °	461 nm	Radial	3.3 V	Standard	T-1	Through Hole	Clear	Colorless
Kingbright WP710A10SRD/J	640 nm	5.9 mm	Round with Domed Top	Red	1300 mcd	3 mm	T-1	20 mA	2.9 mm		660 nm	Radial	1.85 V	Standard	T-1	Through Hole	Diffused	Red		40 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

WP710 Series

Red 640nm LED Indication - Discrete 1.85V Radial
