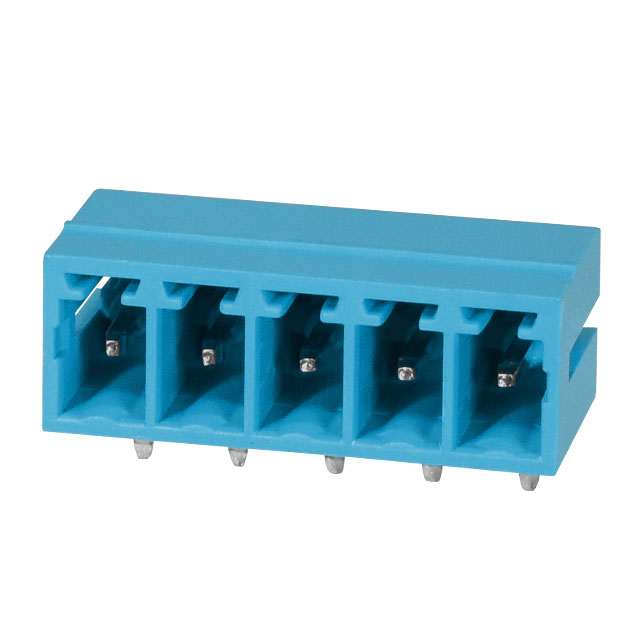

TBP02R1-381-05BE

Active

CUI Devices

TERMINAL BLOCK, PLUGGABLE, 3.81,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TBP02R1-381-05BE

Active

CUI Devices

TERMINAL BLOCK, PLUGGABLE, 3.81,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TBP02R1-381-05BE

Color	Blue
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Current - IEC	7 A
Current - UL	8 A
Features	Notch Guide
Header Orientation	90°, Right Angle
Insulation Height	7.21 mm
Insulation Height	0.284 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	5
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	250 V
Voltage - UL	300 V

TBP02R1 Series

Part	Current - UL	Voltage - IEC	Current - IEC	Mounting Type	Header Orientation	Insulation Height	Insulation Height	Color	Number of Levels	Voltage - UL	Contact Material	Features	Contact Mating Finish	Operating Temperature [Min]	Operating Temperature [Max]	Type	Contact Tail Length	Contact Tail Length	Termination Style	Number of Positions	Pitch [x]	Pitch [x]	Positions Per Level	Material Flammability Rating	Number of Positions
CUI Devices TBP02R1W-381-12BE	8 A	250 V	7 A	Through Hole	90° Right Angle	7.21 mm	0.284 in	Blue	1	300 V	Copper Alloy	Mating Flange	Tin	-40 °C	105 ░C	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	Solder	12	0.15 in	3.81 mm	12	UL94 V-0
CUI Devices TBP02R1-381-07BE	8 A	250 V	7 A	Through Hole	90° Right Angle	7.21 mm	0.284 in	Blue	1	300 V	Copper Alloy		Tin	-40 °C	105 ░C	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	Solder	7	0.15 in	3.81 mm	7	UL94 V-0
CUI Devices TBP02R1W-381-02BE	8 A	250 V	7 A	Through Hole	90° Right Angle	7.21 mm	0.284 in	Blue	1	300 V	Copper Alloy	Mating Flange	Tin	-40 °C	105 ░C	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	Solder	2	0.15 in	3.81 mm	2	UL94 V-0
CUI Devices TBP02R1W-381-04BE	8 A	250 V	7 A	Through Hole	90° Right Angle	7.21 mm	0.284 in	Blue	1	300 V	Copper Alloy	Mating Flange	Tin	-40 °C	105 ░C	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	Solder	4	0.15 in	3.81 mm	4	UL94 V-0
CUI Devices TBP02R1-381-05BE	8 A	250 V	7 A	Through Hole	90° Right Angle	7.21 mm	0.284 in	Blue	1	300 V	Copper Alloy	Notch Guide	Tin	-40 °C	105 ░C	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	Solder		0.15 in	3.81 mm	5	UL94 V-0
CUI Devices TBP02R1-381-14BE	8 A	250 V	7 A	Through Hole	90° Right Angle	7.21 mm	0.284 in	Blue	1	300 V	Copper Alloy		Tin	-40 °C	105 ░C	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	Solder	14	0.15 in	3.81 mm	14	UL94 V-0
CUI Devices TBP02R1W-381-16BE	8 A	250 V	7 A	Through Hole	90° Right Angle	7.21 mm	0.284 in	Blue	1	300 V	Copper Alloy	Mating Flange	Tin	-40 °C	105 ░C	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	Solder		0.15 in	3.81 mm	16	UL94 V-0	16
CUI Devices TBP02R1-381-16BE	8 A	250 V	7 A	Through Hole	90° Right Angle	7.21 mm	0.284 in	Blue	1	300 V	Copper Alloy		Tin	-40 °C	105 ░C	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	Solder		0.15 in	3.81 mm	16	UL94 V-0	16
CUI Devices TBP02R1-381-06BE	8 A	250 V	7 A	Through Hole	90░ Right Angle	7.21 mm	0.284 in	Blue	1	300 V	Copper Alloy	Notch Guide	Tin	-40 °C	105 ░C	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	Solder	6	0.15 in	3.81 mm	6	UL94 V-0
CUI Devices TBP02R1W-381-08BE	8 A	250 V	7 A	Through Hole	90° Right Angle	7.21 mm	0.284 in	Blue	1	300 V	Copper Alloy	Mating Flange	Tin	-40 °C	105 ░C	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	Solder	8	0.15 in	3.81 mm	8	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.66
		10	$ 0.41
		25	$ 0.35
		50	$ 0.32
		100	$ 0.31
		400	$ 0.26
		800	$ 0.24
		1200	$ 0.22
		5200	$ 0.18

Description

General part information

TBP02R1 Series

5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole
