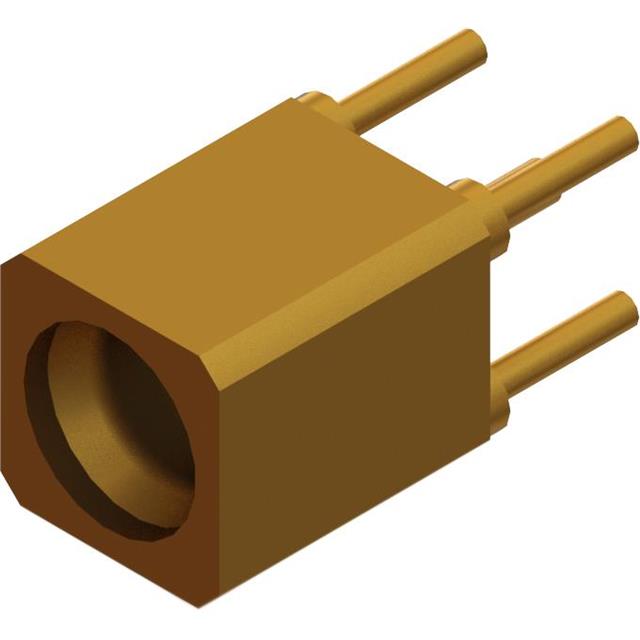

3287-4100

Active

Amphenol SV Microwave

CONN SMPM PLUG STR 50OHM PCB

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN SMPM PLUG STR 50OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	3287-4100

Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMPM
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Full Detent
Frequency - Max [Max]	26.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

Part	Mounting Type	Housing Color	Body Finish	Dielectric Material	Body Material	Center Contact Plating	Frequency - Max [Max]	Connector Style	Shield Termination	Features	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Connector Type	Contact Termination	Number of Ports	Fastening Type	Center Contact Material
Amphenol SV Microwave 3287-4100	Through Hole	Gold	Gold	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Gold	26.5 GHz	SMPM	Solder	Full Detent	-55 °C	125 °C	50 Ohms	Male Pin Plug	Solder	1	Snap-On	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMPM Connector Plug, Male Pin 50 Ohms Through Hole Solder
