TLV49613TBXALA1
ActiveMAGNETIC SWITCH LATCH TO92S
Deep-Dive with AI
Search across all available documentation for this part.
TLV49613TBXALA1
ActiveMAGNETIC SWITCH LATCH TO92S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TLV49613TBXALA1 |
|---|---|
| Current - Output (Max) [Max] | 25 mA |
| Current - Supply (Max) [Max] | 2.5 mA |
| Features | Temperature Compensated |
| Function | Latch |
| Grade | Automotive |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Open Drain |
| Package / Case | TO-226-3, TO-92-3 Short Body |
| Polarization | South Pole |
| Qualification | AEC-Q100 |
| Sensing Range | -7.5 mT, 7.5 mT |
| Supplier Device Package | TO-92S |
| Technology | Hall Effect |
| Test Condition | 25 °C |
| Voltage - Supply [Max] | 26 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 2000 | $ 0.31 | |
Description
General part information
TLV49613 Series

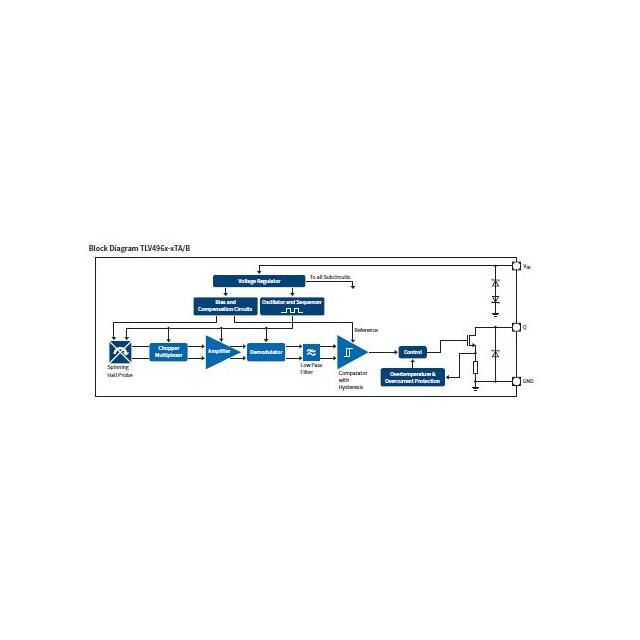

The TLV496x-xTA/B Hall sensor family comprises a line of Hall switches for contactless position sensing. The sensors are specially designed to provide an easy-to-use and cost effective solution for position sensing applications. TLV496x-xTA/B Hall switch family is the ideal solution for all target applications which require a precise Hall switch or Hall latch (unipolar/bipolar). With a wide operating temperature range as well as excellent magnetic behavior Infineon’s switches are ideally suited for: Index counting applications with a pole wheel Rotor position detection (in BLDC motors) Open/closing detection
