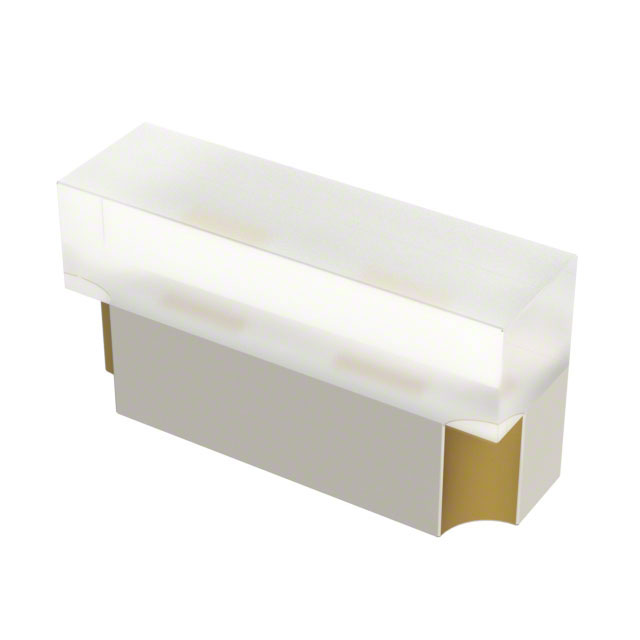

SML-LXR0401USBW5MA

Active

Lumex Opto/Components Inc.

LED BLUE DIFFUSED SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED BLUE DIFFUSED SMD

Technical Specifications

Parameters and characteristics for this part

Part	Lens Color	Height (Max) [Max] [z]	Package / Case	Mounting Type	Configuration	Color	Lens Transparency	Current - Test	Lens Style	Millicandela Rating	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Lens Size [x]	Lens Size [y]	Wavelength - Peak	Supplier Device Package	Height (Max) [Max]
Lumex Opto/Components Inc. SML-LXR0401USBW5MA	White	0.3 mm	0402 (1005 Metric)	Surface Mount	Independent	Blue	Diffused	5 mA	Rectangle with Flat Top	28 mcd	145 °	1 mm	0.55 mm	2.8 V	1 mm	0.3 mm
Lumex Opto/Components Inc. SML-LXR0401UPGW5MA	White	0.3 mm	0402 (1005 Metric)	Surface Mount	Independent	Green	Diffused	5 mA	Rectangle with Flat Top	71 mcd	145 °	1 mm	0.55 mm	2.8 V	1 mm	0.3 mm	520 nm
Lumex Opto/Components Inc. SML-LXR0401UWC5MA	Colorless		0402 (1005 Metric)	Surface Mount Right Angle		White	Clear	5 mA	Rectangle with Flat Top	100 mcd	140 °	1 mm	0.55 mm	2.9 V	1.2 mm	0.3 mm		0402	0.43 mm
Lumex Opto/Components Inc. SML-LXR0401SIC5MA	Colorless		0402 (1005 Metric)	Surface Mount Right Angle		Red	Clear	5 mA	Rectangle with Flat Top	28.5 mcd	145 °	1 mm	0.55 mm	2 V	1.2 mm	0.3 mm	630 nm	0402	0.43 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue LED Indication - Discrete 2.8V 0402 (1005 Metric)

Technical documentation and resources
