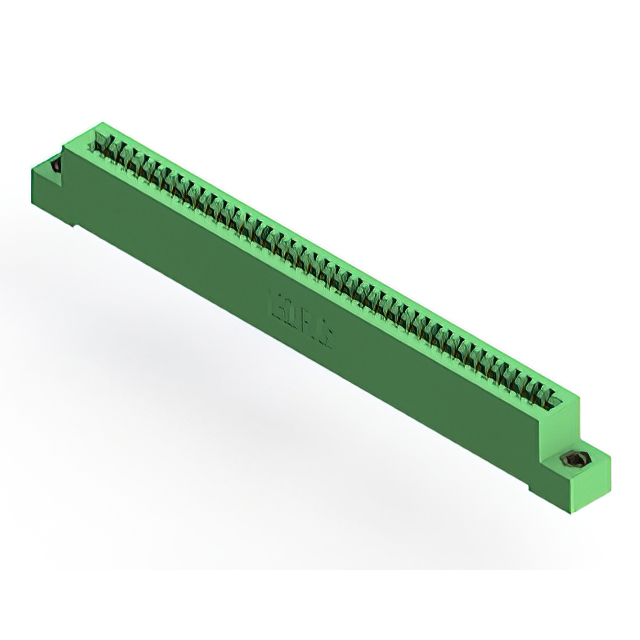

842-040-524-107
ActiveEDAC Inc.
CONN EDGE SINGLE FML 40POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-040-524-107
ActiveEDAC Inc.
CONN EDGE SINGLE FML 40POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-040-524-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Positions/Bay/Row [custom] | 40 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
842-040 Series
...
| Part | Card Type | Features | Contact Material | Termination Rows | Color | Contact Finish | Termination | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Material - Insulation | Contact Type | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Rows | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Mounting Type | Read Out | Gender | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Dual Edge | Card Extender | Copper Alloy | 2 | Green | Gold | Solder | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Cantilever | 20 | 20 | 20 | 2 | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | Board Edge Straddle Mount | Dual | Female | |
EDAC Inc. | Non Specified - Dual Edge | Copper Alloy | 2 | Green | Gold | Solder | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Cantilever | 20 | 20 | 20 | 2 | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | Through Hole | Dual | Female | ||
EDAC Inc. | Non Specified - Dual Edge | Copper Alloy | 2 | Green | Gold | Wire Wrap | 10 Áin | 0.25 Ám | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Cantilever | 20 | 20 | 20 | 2 | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | Through Hole | Dual | Female | ||
EDAC Inc. | Non Specified - Single Edge | Copper Alloy | 1 | Green | Gold | Solder | 10 Áin | 0.25 Ám | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Cantilever | 1 | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | Through Hole Right Angle | Single | Female | 40 | ||||
EDAC Inc. | Non Specified - Single Edge | Copper Alloy | 1 | Green | Gold | Solder | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Cantilever | 1 | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | Through Hole | Single | Female | 40 | ||||||
EDAC Inc. | Non Specified - Dual Edge | Copper Alloy | 2 | Green | Gold | Wire Wrap | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Cantilever | 20 | 20 | 20 | 2 | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | Through Hole | Dual | Female | ||
EDAC Inc. | Non Specified - Dual Edge | Copper Alloy | 2 | Green | Gold | Solder | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Cantilever | 20 | 20 | 20 | 2 | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | Through Hole Right Angle | Dual | Female | ||
EDAC Inc. | Non Specified - Dual Edge | Copper Alloy | 2 | Green | Gold | Solder | 10 Áin | 0.25 Ám | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Cantilever | 20 | 20 | 20 | 2 | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | Through Hole Right Angle | Dual | Female | ||
EDAC Inc. | Non Specified - Dual Edge | Copper Alloy | 2 | Green | Gold | Solder | 10 Áin | 0.25 Ám | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Cantilever | 20 | 20 | 20 | 2 | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | Through Hole Right Angle | Dual | Female | ||
EDAC Inc. | Non Specified - Single Edge | Copper Alloy | 1 | Green | Gold | Solder | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Cantilever | 1 | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | Through Hole Right Angle | Single | Female | 40 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
842-040 Series
40 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
Documents
Technical documentation and resources
