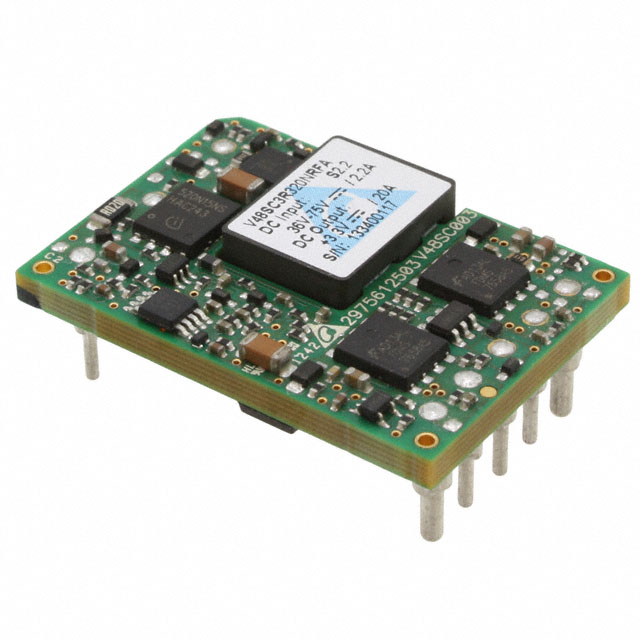

V48SC3R320NRFA

NRND

Delta Electronics

DC DC CONVERTER 3.3V 66W

Search across all available documentation for this part.

NRND

Delta Electronics

DC DC CONVERTER 3.3V 66W

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Efficiency	Type	Voltage - Output 1	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Isolation	Applications	Features	Control Features	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Power (Watts)
Delta Electronics V48SC3R320NRFA	Through Hole	91 %	Isolated Module	3.3 V	36 V	1	1.5 kV	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	Active Low Enable	20 A	85 °C	-40 °C	75 V	8-DIP Module 1/16 Brick	12.7 mm	0.9 "	22.9 mm	0.5 in	33 mm	1.3 "
Delta Electronics V48SC3R325NRFA	Through Hole	90 %	Isolated Module	3.3 V	36 V	1	1.5 kV	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	Active Low Enable	25 A	85 °C	-40 °C	75 V	8-DIP Module 1/16 Brick	12.7 mm	0.9 "	22.9 mm	0.5 in	33 mm	1.3 "	83 W
Delta Electronics V48SC05017NRFA	Through Hole	91.5 %	Isolated Module	5 V	36 V	1	1.5 kV	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	Active Low Enable	17 A	85 °C	-40 °C	75 V	8-DIP Module 1/16 Brick	12.7 mm	0.9 "	22.9 mm	0.5 in	33 mm	1.3 "	85 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	35	$ 27.04

General part information

Isolated Module DC DC Converter 1 Output 3.3V 20A 36V - 75V Input

Technical documentation and resources

No documents available
