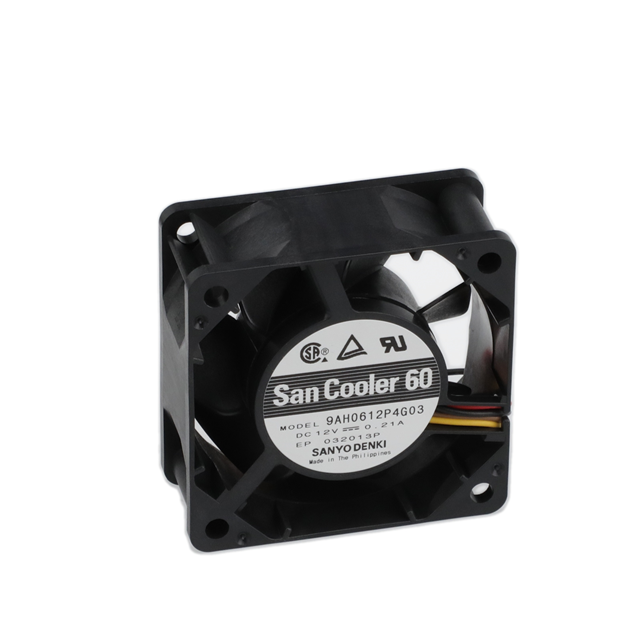

9AH0612P4G03

Obsolete

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9AH0612P4G03

Approval Agency	UR, CSA, TUV
Bearing Type	Ball
Current Rating (Amps)	0.21 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Material - Blade	Plastic
Material - Frame	Plastic
Noise	39 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
RPM	5600 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.2 VDC
Weight	80 g
Weight	0.176 lb
Width [y]	25 mm

Part	Features	Voltage - Rated	Approval Agency	Noise	Fan Type	Material - Frame	Weight	Weight	RPM	Termination	Width [y]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Bearing Type	Size / Dimension [x]	Size / Dimension [y]	Material - Blade	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]
Sanyo Denki America Inc. 9AH0612P4G03	Locked Rotor Protection PWM Control Speed Sensor (Tach)	12 VDC	CSA TUV UR	39 dB(A)	Tubeaxial	Plastic	80 g	0.176 lb	5600 RPM	4 Wire Leads	25 mm	-10 °C	-10 °C	60 °C	60 °C	Ball	60 mm	60 mm	Plastic	0.21 A	13.2 VDC	10.2 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.67
