1049069

Active

SICK, Inc.

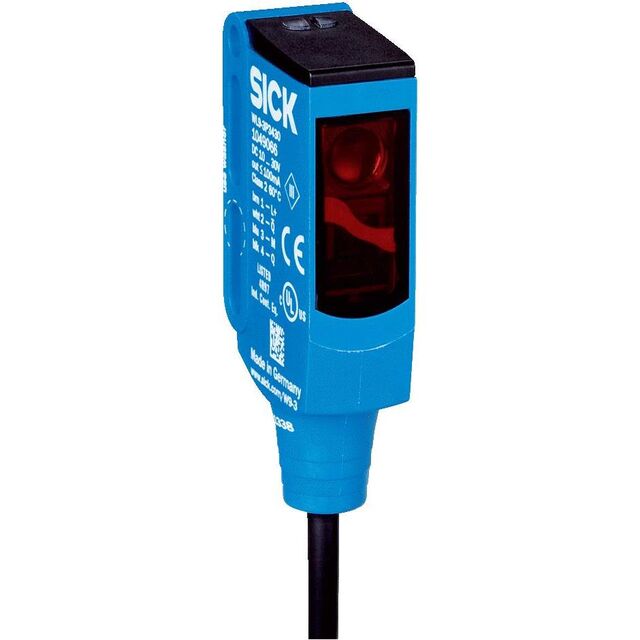

SENSOR RETROREFLECTIVE 2.5M NPN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1049069

Active

SICK, Inc.

SENSOR RETROREFLECTIVE 2.5M NPN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1049069

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	IP69K, IP67, IP66
Light Source	RED (650nm)
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Output Configuration	NPN
Response Time	500 µs
Sensing Distance	98.425 in
Sensing Distance	2.5 m
Sensing Method	Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

WL9 Series

Part	Cable Length	Cable Length	Light Source	Response Time	Sensing Method	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Distance	Sensing Distance	Connection Method	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Adjustment Type
SICK, Inc. 1049069	78.74 in	2 m	RED (650nm)	500 µs	Retroreflective	IP66 IP67 IP69K	-40 °C	60 °C	98.425 in	2.5 m	Cable	NPN	30 VDC	10 VDC
SICK, Inc. WL9-3N2462			RED (650nm)	500 µs	Retroreflective		-40 °C	60 °C	15.748 in	400 mm	Connector M12	NPN	30 VDC	10 VDC	Adjustable
SICK, Inc. 1065065	4.724 in	120 mm	RED (650nm)	500 µs	Retroreflective	IP66 IP67 IP69K	-40 °C	60 °C	98.425 in	2.5 m	Cable with Connector	PNP	30 VDC	10 VDC
SICK, Inc. WL9-3P3162	4.724 in	120 mm	RED (650nm)	500 µs	Retroreflective		-40 °C	60 °C	15.748 in	400 mm	Cable with Connector	PNP	30 VDC	10 VDC	Adjustable
SICK, Inc. WL9-3P2262			RED (650nm)	500 µs	Retroreflective		-40 °C	60 °C	15.748 in	400 mm	Connector M8	PNP	30 VDC	10 VDC	Adjustable
SICK, Inc. WL9-3P3462	4.724 in	120 mm	RED (650nm)	500 µs	Retroreflective		-40 °C	60 °C	15.748 in	400 mm	Cable with Connector	PNP	30 VDC	10 VDC	Adjustable
SICK, Inc. 1049067	4.724 in	120 mm	RED (650nm)	500 µs	Retroreflective	IP66 IP67 IP69K	-40 °C	60 °C	118.11 in	3000 mm	Cable with Connector	PNP	30 VDC	10 VDC	Adjustable
SICK, Inc. 1049054	78.74 in	2 m	RED (650nm)	500 µs	Retroreflective		-40 °C	60 °C	15.748 in	400 mm	Cable	PNP	30 VDC	10 VDC	Adjustable
SICK, Inc. WL9-3N1132	78.74 in	2 m	RED (650nm)	500 µs	Retroreflective		-40 °C	60 °C	196.85 in	5 m	Cable	NPN	30 VDC	10 VDC	Adjustable
SICK, Inc. 1049056	78.74 in	2 m	RED (650nm)	500 µs	Retroreflective		-40 °C	60 °C	196.85 in	5 m	Cable	PNP	30 VDC	10 VDC	Adjustable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 228.39

Description

General part information

WL9 Series

Retroreflective Optical Sensor 98.425" (2.5m) NPN
