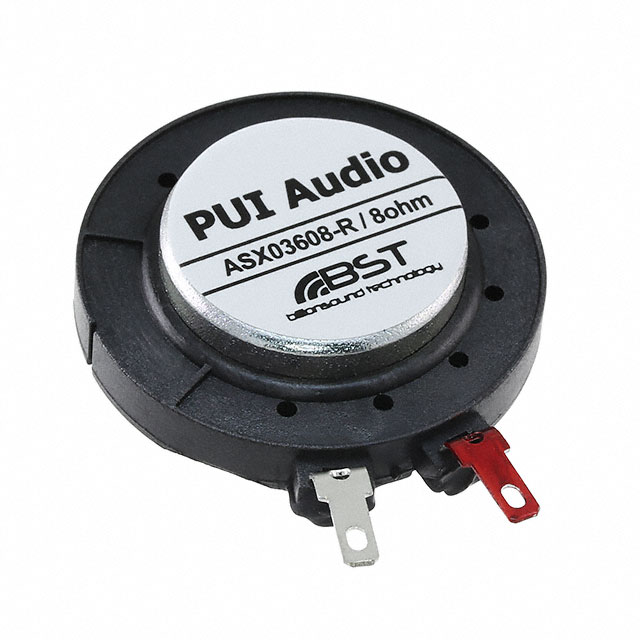

ASX03608-R
ActivePUI AUDIO
SPEAKERS & TRANSDUCERS EXCITER 36MM 8 OHM 3W 85DB 400 HZ
Deep-Dive with AI
Search across all available documentation for this part.
ASX03608-R
ActivePUI AUDIO
SPEAKERS & TRANSDUCERS EXCITER 36MM 8 OHM 3W 85DB 400 HZ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASX03608-R |
|---|---|
| Efficiency - dBA | 85 dBA |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 400 Hz |
| Frequency Range [Max] | 10.5 kHz |
| Frequency Range [Min] | 400 Hz |
| Height - Seated (Max) [Max] | 0.492 in |
| Height - Seated (Max) [Max] | 12.5 mm |
| Impedance | 8 Ohms |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 5 W |
| Power - Rated | 3 W |
| Shape | Round |
| Size / Dimension [diameter] | 36.7 mm |
| Size / Dimension [diameter] | 1.445 in |
| Technology | Magnetic |
| Termination | Quick Connect |
| Type | Exciter |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ASX Series
Speakers & Transducers EXCITER 36MM 8 OHM 3W 85DB 400 HZ
