LCMXO3L-4300C-6BG400I

Active

LATTICE SEMICONDUCTOR

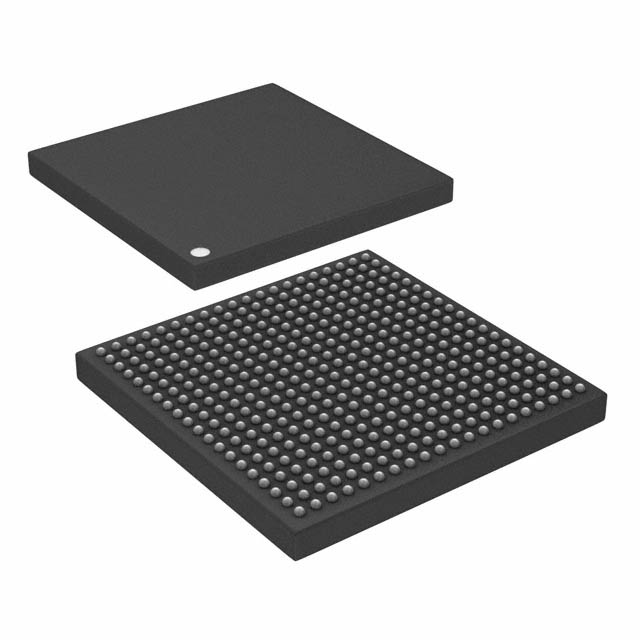

FPGA MACHXO3 FAMILY 4300 CELLS 65NM TECHNOLOGY 1.2V 400-PIN CABGA TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Selector Guide Datasheet

LCMXO3L-4300C-6BG400I

Active

LATTICE SEMICONDUCTOR

FPGA MACHXO3 FAMILY 4300 CELLS 65NM TECHNOLOGY 1.2V 400-PIN CABGA TRAY

Deep-Dive with AI

DocumentsProduct Selector Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LCMXO3L-4300C-6BG400I

Mounting Type	Surface Mount
Number of I/O	335
Number of LABs/CLBs	540
Number of Logic Elements/Cells	4320
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C
Package / Case	400-LFBGA
Supplier Device Package	400-CABGA (17x17)
Total RAM Bits	94208 Bits
Voltage - Supply [Max]	3.465 V
Voltage - Supply [Min]	2.375 V

LCMXO3 Series

...

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Total RAM Bits	Number of I/O	Supplier Device Package	Mounting Type	Number of LABs/CLBs	Package / Case	Number of Logic Elements/Cells	Supplier Device Package [x]	Supplier Device Package [y]	Total RAM Bits [custom]	Total RAM Bits [custom]
LATTICE SEMICONDUCTOR LCMXO3L-4300C-6BG400I	2.375 V	3.465 V	100 °C	-40 C	94208 Bits	335	400-CABGA (17x17)	Surface Mount	540	400-LFBGA	4320
LATTICE SEMICONDUCTOR LCMXO3LF-9400E-6BG256C			85 °C	0 °C	442368 bits	206 I/O	256-CABGA (14x14)	Surface Mount	1175	256-LFBGA	9400
LATTICE SEMICONDUCTOR LCMXO3LF-1300E-5UWG36ITR1K			100 °C	-40 C		28	36-WLCSP	Surface Mount	160	36-UFBGA WLCSP	1280	2.54	2.59	65536 bits
LATTICE SEMICONDUCTOR LCMXO3LF-4300E-5UWG81ITR			100 °C	-40 C	94208 Bits	63 I/O	81-WLCSP	Surface Mount	540	81-UFBGA WLCSP	4320	3.8	3.69
LATTICE SEMICONDUCTOR LCMXO3LF-4300C-6BG256C	2.375 V	3.465 V	85 °C	0 °C	94208 Bits	206 I/O	256-CABGA (14x14)	Surface Mount	540	256-LFBGA	4320
LATTICE SEMICONDUCTOR LCMXO3L-6900C-5BG400C	2.375 V	3.465 V	85 °C	0 °C	245760 bits	335	400-CABGA (17x17)	Surface Mount		400-LFBGA	6864
LATTICE SEMICONDUCTOR LCMXO3D-4300HC-5BG256C	2.375 V	3.465 V	85 °C	0 °C	94208 Bits	206 I/O	256-CABGA (14x14)	Surface Mount	538	256-LFBGA	4300
LATTICE SEMICONDUCTOR LCMXO3L-2100C-5BG256C	2.375 V	3.465 V	85 °C	0 °C		206 I/O	256-CABGA (14x14)	Surface Mount	264	256-LFBGA	2112				75776 Bits
LATTICE SEMICONDUCTOR LCMXO3L-4300C-5BG324C	2.375 V	3.465 V	85 °C	0 °C	94208 Bits	279	15x15 324-CABGA	Surface Mount	540	324-LFBGA	4320
LATTICE SEMICONDUCTOR LCMXO3LF-6900C-5BG400C	2.375 V	3.465 V	85 °C	0 °C	245760 bits	335	400-CABGA (17x17)	Surface Mount		400-LFBGA	6864

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	90	$ 18.85
Newark	Each	50	$ 23.72
		100	$ 22.46
		250	$ 19.53
		500	$ 18.98

Description

General part information

LCMXO3 Series

MachXO3 Field Programmable Gate Array (FPGA) IC 335 94208 4320 400-LFBGA

Documents

Technical documentation and resources

Product Selector Guide

Datasheet
