333-025-524-104
ActiveEDAC Inc.

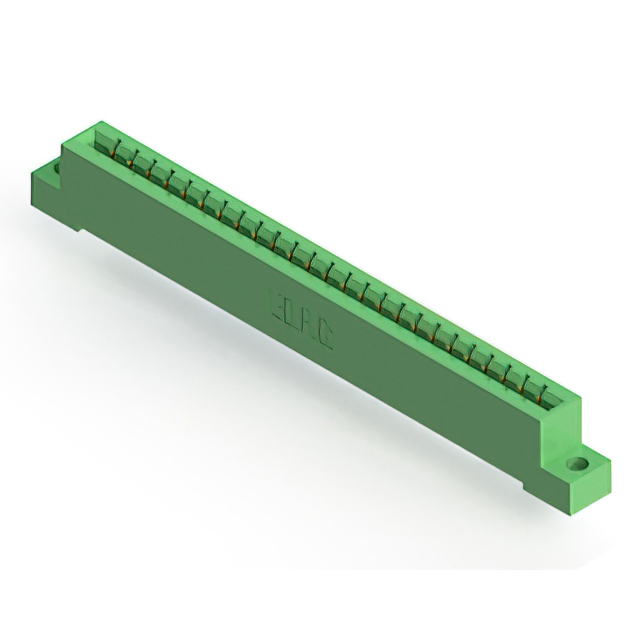

CONN EDGE SGL FMALE 25POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
333-025-524-104
ActiveEDAC Inc.
CONN EDGE SGL FMALE 25POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-025-524-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
333-025 Series
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Contact Finish | Termination Rows | Mounting Type | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Material - Insulation | Card Type | Color | Read Out | Contact Material | Pitch [x] | Pitch [x] | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Termination | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | 1 | Through Hole | 25 | 10 Áin | 0.25 Ám | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Polyester Thermoplastic | Non Specified - Single Edge | Green | Single | Copper Alloy | 0.156 in | 3.96 mm | Female | -40 °C | 105 ░C | 1 | Solder | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | 1 | Through Hole | 25 | 10 Áin | 0.25 Ám | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Polyester Thermoplastic | Non Specified - Single Edge | Green | Single | Copper Alloy | 0.156 in | 3.96 mm | Female | -40 °C | 105 ░C | 1 | Solder | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | 1 | Through Hole Right Angle | 25 | 10 Áin | 0.25 Ám | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Polyester Thermoplastic | Non Specified - Single Edge | Green | Single | Copper Alloy | 0.156 in | 3.96 mm | Female | -40 °C | 105 ░C | 1 | Wire Wrap | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | 1 | Through Hole | 25 | 10 Áin | 0.25 Ám | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Polyester Thermoplastic | Non Specified - Single Edge | Green | Single | Copper Alloy | 0.156 in | 3.96 mm | Female | -40 °C | 105 ░C | 1 | Solder | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | 1 | Through Hole | 25 | 10 Áin | 0.25 Ám | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Polyester Thermoplastic | Non Specified - Single Edge | Green | Single | Copper Alloy | 0.156 in | 3.96 mm | Female | -40 °C | 105 ░C | 1 | Wire Wrap | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | 1 | Through Hole | 25 | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | Polyester Thermoplastic | Non Specified - Single Edge | Green | Single | Copper Alloy | 0.156 in | 3.96 mm | Female | -40 °C | 105 ░C | 1 | Solder | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | 1 | Through Hole | 25 | 10 Áin | 0.25 Ám | Side Mount Opening Unthreaded | Polyester Thermoplastic | Non Specified - Single Edge | Green | Single | Copper Alloy | 0.156 in | 3.96 mm | Female | -40 °C | 105 ░C | 1 | Wire Wrap | 3.25 mm | 0.128 in | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | 1 | Through Hole | 25 | 10 Áin | 0.25 Ám | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Polyester Thermoplastic | Non Specified - Single Edge | Green | Single | Copper Alloy | 0.156 in | 3.96 mm | Female | -40 °C | 105 ░C | 1 | Solder | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | 1 | Through Hole Right Angle | 25 | 10 Áin | 0.25 Ám | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Polyester Thermoplastic | Non Specified - Single Edge | Green | Single | Copper Alloy | 0.156 in | 3.96 mm | Female | -40 °C | 105 ░C | 1 | Wire Wrap | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | 1 | Through Hole Right Angle | 25 | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Non Specified - Single Edge | Green | Single | Copper Alloy | 0.156 in | 3.96 mm | Female | -40 °C | 105 ░C | 1 | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 7.82 | |
Description
General part information
333-025 Series
25 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
