892-031-524-108
ActiveEDAC Inc.

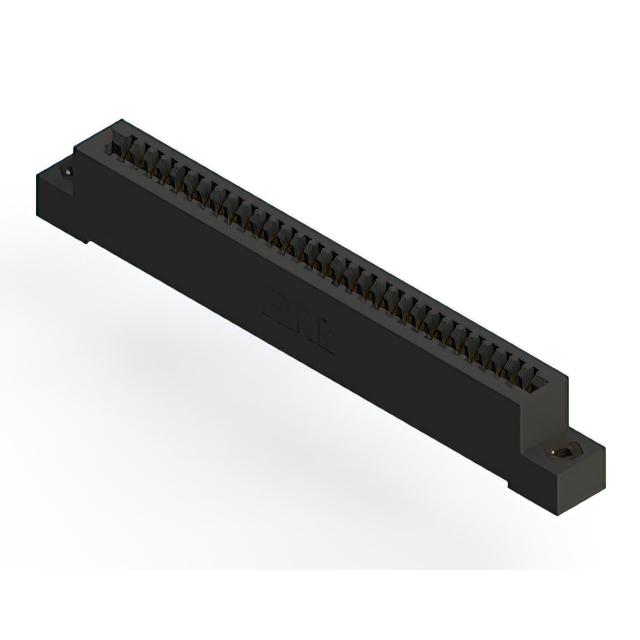

CONN EDGE SINGLE FML 31POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-031-524-108
ActiveEDAC Inc.
CONN EDGE SINGLE FML 31POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-031-524-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 31 |
| Number of Positions/Bay/Row [custom] | 31 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
892-031 Series
| Part | Color | Operating Temperature [Max] | Operating Temperature [Min] | Termination Rows | Read Out | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Card Type | Gender | Number of Positions | Number of Positions/Bay/Row [custom] | Termination | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Mounting Type | Pitch [x] | Pitch [x] | Material - Insulation | Contact Type | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Black | 125 °C | -40 °C | 1 | Single | 1 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Female | 31 | 31 | Solder | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Through Hole Right Angle | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy |
EDAC Inc. | Black | 125 °C | -40 °C | 1 | Single | 1 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Female | 31 | 31 | Solder | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Through Hole Right Angle | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy |
EDAC Inc. | Black | 125 °C | -40 °C | 1 | Single | 1 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Female | 31 | 31 | Wire Wrap | Flush Mount M3 Threaded Insert Top Opening | Through Hole | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | ||
EDAC Inc. | Black | 125 °C | -40 °C | 1 | Single | 1 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Female | 31 | 31 | Solder | Through Hole | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | |||
EDAC Inc. | Black | 125 °C | -40 °C | 1 | Single | 1 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Female | 31 | 31 | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | ||
EDAC Inc. | Black | 125 °C | -40 °C | 1 | Single | 1 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Female | 31 | 31 | Solder | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Through Hole | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy |
EDAC Inc. | Black | 125 °C | -40 °C | 1 | Single | 1 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Female | 31 | 31 | Wire Wrap | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Through Hole | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy |
EDAC Inc. | Black | 125 °C | -40 °C | 1 | Single | 1 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Female | 31 | 31 | Solder Eyelet(s) | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Through Hole | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy |
EDAC Inc. | Black | 125 °C | -40 °C | 1 | Single | 1 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Female | 31 | 31 | Solder | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Through Hole | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy |
EDAC Inc. | Black | 125 °C | -40 °C | 1 | Single | 1 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Female | 31 | 31 | Wire Wrap | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Through Hole | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 116.12 | |
Description
General part information
892-031 Series
31 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
