REC6-4809DRW/R10/A/X1

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 6W DC/DC 10KV REG 48VIN +/-9VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

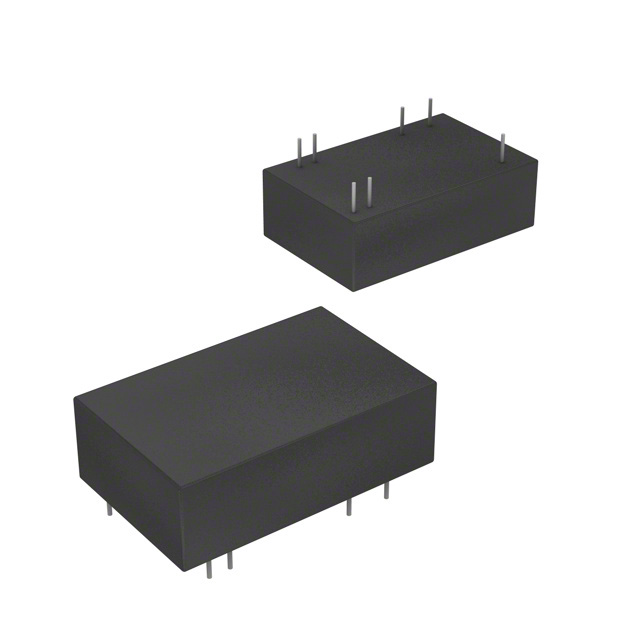

REC6-4809DRW/R10/A/X1

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 6W DC/DC 10KV REG 48VIN +/-9VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	REC6-4809DRW/R10/A/X1

Applications	ITE (Commercial), Medical
Current - Output (Max) [Max]	335 mA
Current - Output (Max) [Min]	335 mA
Efficiency	83 %
Features	SCP, UVLO
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module, 7 Leads
Power (Watts)	6 W
Size / Dimension [x]	1.26 in
Size / Dimension [x]	32 mm
Size / Dimension [y]	20.3 mm
Size / Dimension [y]	0.8 in
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	10 kV
Voltage - Output 1	9 V
Voltage - Output 2	-9 V

REC6-S_DRW/R Series

Isolated DC/DC Converters - Through Hole 6W DC/DC 10kV REG 48Vin 9Vout

...

Part	Voltage - Input (Max) [Max]	Features	Package / Case	Package / Case	Voltage - Output 1	Number of Outputs	Applications	Mounting Type	Voltage - Input (Min) [Min]	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 2	Power (Watts)	Current - Output (Max)	Current - Output (Max)	Type	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Control Features	Current - Output (Max) [Min]
RECOM Power REC6-1212DRW/R10/C	18 V	SCP	9 PC Pad	24-DIP Module	12 V	2	ITE (Commercial) Medical	Through Hole	9 V	81 %	-40 °C	75 ░C	-12 V	6 W	250 mA	250 mA	Isolated Module	10 kV	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in
RECOM Power REC6-4815SRW/R8/A/CTRL/X1	75 V	Remote On/Off SCP UVLO		24-DIP Module 7 Leads	15 V	1	ITE (Commercial) Medical	Through Hole	36 V	86 %	-40 °C	75 ░C		6 W			Isolated Module	8 kV	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	400 mA	Active Low Enable
RECOM Power REC6-1212SRW/R8/A/CTRL	18 V	Remote On/Off SCP		24-DIP Module 7 Leads	12 V	1	ITE (Commercial) Medical	Through Hole	9 V		-40 °C	75 ░C		6 W			Isolated Module	8 kV	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	500 mA	Active Low Enable
RECOM Power REC6-1215DRW/R8/C/X1	18 V	SCP UVLO	9 PC Pad	24-DIP Module	15 V	2	ITE (Commercial) Medical	Through Hole	9 V		-40 °C	75 ░C	-15 V	6 W			Isolated Module	8 kV	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in
RECOM Power REC6-4809DRW/R10/A/X1	75 V	SCP UVLO		24-DIP Module 7 Leads	9 V	2	ITE (Commercial) Medical	Through Hole	36 V	83 %	-40 °C	75 ░C	-9 V	6 W			Isolated Module	10 kV	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	335 mA		335 mA
RECOM Power REC6-4809SRW/R10/A/CTRL	75 V	Remote On/Off SCP		24-DIP Module 7 Leads	9 V	1	ITE (Commercial) Medical	Through Hole	36 V	83 %	-40 °C	75 ░C		6 W			Isolated Module	10 kV	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	667 mA	Active Low Enable
RECOM Power REC6-4812SRW/R10/C/X1	75 V	SCP UVLO	9 PC Pad	24-DIP Module	12 V	1	ITE (Commercial) Medical	Through Hole	36 V	84 %	-40 °C	75 ░C		6 W			Isolated Module	10 kV	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	500 mA
RECOM Power REC6-4815DRW/R10/C	75 V	SCP	9 PC Pad	24-DIP Module	15 V	2	ITE (Commercial) Medical	Through Hole	36 V	84 %	-40 °C	75 ░C	-15 V	6 W			Isolated Module	10 kV	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in
RECOM Power REC6-1215SRW/R8/A/CTRL	18 V	Remote On/Off SCP		24-DIP Module 7 Leads	15 V	1	ITE (Commercial) Medical	Through Hole	9 V	84 %	-40 °C	75 ░C		6 W			Isolated Module	8 kV	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	400 mA	Active Low Enable
RECOM Power REC6-4815SRW/R10/C/X1	75 V	SCP UVLO	9 PC Pad	24-DIP Module	15 V	1	ITE (Commercial) Medical	Through Hole	36 V	86 %	-40 °C	75 ░C		6 W			Isolated Module	10 kV	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	400 mA
