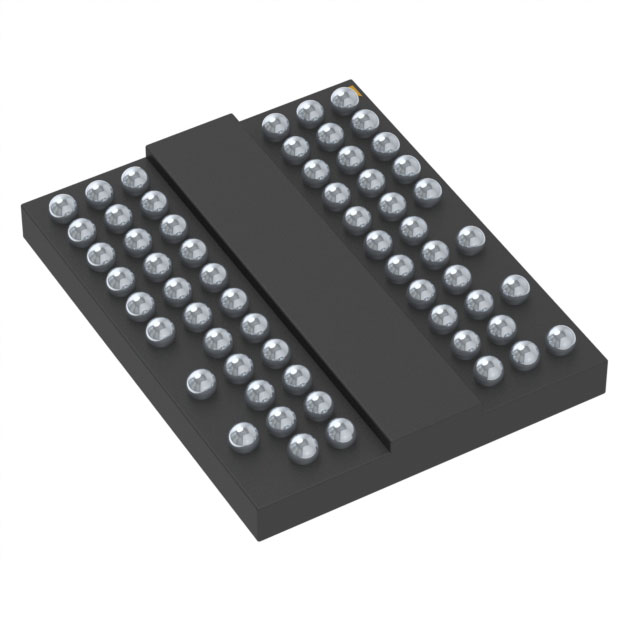

W971GG8SS-25 TR

Obsolete

Winbond Electronics

IC DRAM 1GBIT SSTL 18 60WBGA

Deep-Dive with AI

Search across all available documentation for this part.

W971GG8SS-25 TR

Obsolete

Winbond Electronics

IC DRAM 1GBIT SSTL 18 60WBGA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	W971GG8SS-25 TR

Access Time	57.5 ns
Clock Frequency	400 MHz
Memory Format	DRAM
Memory Interface	SSTL_18
Memory Organization	128 M
Memory Size	1 Mbit
Memory Type	Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	60-TFBGA
Supplier Device Package	60-WBGA
Supplier Device Package [x]	8
Supplier Device Package [y]	9.5
Technology	SDRAM - DDR2
Voltage - Supply [Max]	1.9 V
Voltage - Supply [Min]	1.7 V
Write Cycle Time - Word, Page	15 ns

W971GG8 Series

Part	Memory Format	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Technology	Write Cycle Time - Word, Page	Access Time	Memory Organization	Mounting Type	Memory Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Memory Interface	Memory Size	Clock Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]
Winbond Electronics W971GG8SS-25 TR	DRAM	60-WBGA	8	9.5	SDRAM - DDR2	15 ns	57.5 ns	128 M	Surface Mount	Volatile	85 °C	0 °C	60-TFBGA	SSTL_18	1 Mbit	400 MHz	1.9 V	1.7 V
Winbond Electronics W971GG8KB25I	DRAM	60-WBGA (8x12.5)			SDRAM - DDR2	15 ns	57.5 ns	128 M	Surface Mount	Volatile	95 °C	-40 °C	60-TFBGA	Parallel	1 Mbit	200 MHz	1.9 V	1.7 V
Winbond Electronics W971GG8KB25I TR	DRAM	60-WBGA (8x12.5)			SDRAM - DDR2	15 ns	57.5 ns	128 M	Surface Mount	Volatile	95 °C	-40 °C	60-TFBGA	Parallel	1 Mbit	200 MHz	1.9 V	1.7 V
Winbond Electronics W971GG8SS25I	DRAM	60-WBGA	8	9.5	SDRAM - DDR2	15 ns	57.5 ns	128 M	Surface Mount	Volatile	95 °C	-40 °C	60-TFBGA	SSTL_18	1 Mbit	400 MHz	1.9 V	1.7 V
Winbond Electronics W971GG8KB-25	DRAM	60-WBGA (8x12.5)			SDRAM - DDR2	15 ns	57.5 ns	128 M	Surface Mount	Volatile	85 °C	0 °C	60-TFBGA	Parallel	1 Mbit	200 MHz	1.9 V	1.7 V
Winbond Electronics W971GG8JB-25	DRAM	60-WBGA (8x12.5)			SDRAM - DDR2	15 ns	57.5 ns	128 M	Surface Mount	Volatile	85 °C	0 °C	60-TFBGA	Parallel	1 Mbit	200 MHz	1.9 V	1.7 V
Winbond Electronics W971GG8SB-25 TR	DRAM	60-WBGA (8x12.5)			SDRAM - DDR2	15 ns	57.5 ns	128 M	Surface Mount	Volatile	85 °C	0 °C	60-TFBGA	Parallel	1 Mbit	200 MHz	1.9 V	1.7 V
Winbond Electronics W971GG8SB-25	DRAM	60-WBGA (8x12.5)			SDRAM - DDR2	15 ns	57.5 ns	128 M	Surface Mount	Volatile	85 °C	0 °C	60-TFBGA	Parallel	1 Mbit	200 MHz	1.9 V	1.7 V
Winbond Electronics W971GG8SB25I TR	DRAM	60-WBGA (8x12.5)			SDRAM - DDR2	15 ns	57.5 ns	128 M	Surface Mount	Volatile	95 °C	-40 °C	60-TFBGA	Parallel	1 Mbit	200 MHz	1.9 V	1.7 V
Winbond Electronics W971GG8SB25I	DRAM	60-WBGA (8x12.5)			SDRAM - DDR2	15 ns	57.5 ns	128 M	Surface Mount	Volatile	95 °C	-40 °C	60-TFBGA	Parallel	1 Mbit	200 MHz	1.9 V	1.7 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

W971GG8 Series

SDRAM - DDR2 Memory IC 1Gbit SSTL_18 400 MHz 57.5 ns 60-WBGA (8x9.5)

Documents

Technical documentation and resources

No documents available
