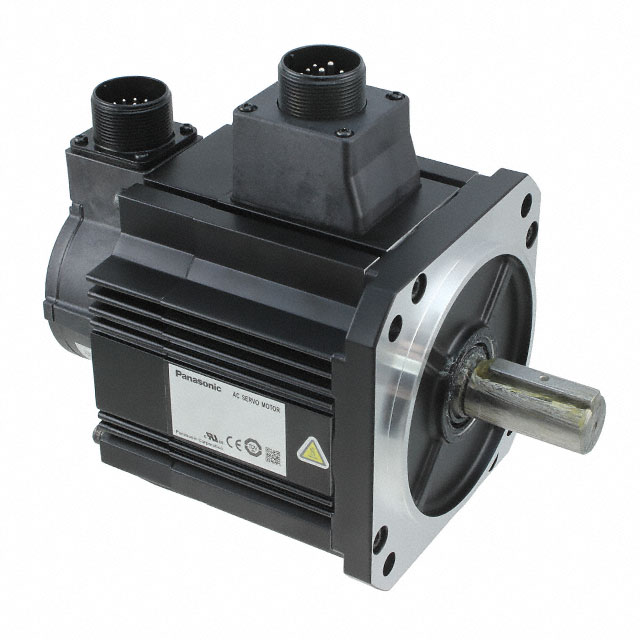

MDME102GCH

Obsolete

Panasonic Industrial Automation Sales

SERVOMOTOR 2000 RPM 200V

Deep-Dive with AI

Search across all available documentation for this part.

MDME102GCH

Obsolete

Panasonic Industrial Automation Sales

SERVOMOTOR 2000 RPM 200V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MDME102GCH

Approval Agency	TUV, CE, CSA, UL, cULus
Diameter - Shaft [diameter]	0.866 in
Diameter - Shaft [diameter]	22 mm
Encoder Type	Incremental
Features	Oil Seal, Key, Brake
Function	Servomotor
Length - Shaft and Bearing [x]	55 mm
Length - Shaft and Bearing [x]	2.165 in
Mounting Hole Spacing	5.709 in
Mounting Hole Spacing	145 mm
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power - Rated	1000 W
RPM	2000 RPM
Size / Dimension [x]	5.118 in
Size / Dimension [x]	130 mm
Size / Dimension [y]	130 mm
Size / Dimension [y]	5.118 "
Termination Style	Connector
Torque - Max Momentary (oz-in / mNm)	14300 mNm
Torque - Max Momentary (oz-in / mNm)	2025 oz-in
Torque - Rated (oz-in / mNm)	4770 mNm
Torque - Rated (oz-in / mNm)	675.5 oz-in
Type	AC Motor
Voltage - Rated	200 VAC
Weight	15 lbs
Weight	6.8 kg

MDME102 Series

Part	Type	Termination Style	Voltage - Rated	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	RPM	Mounting Hole Spacing	Mounting Hole Spacing	Power - Rated	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Function	Approval Agency	Weight	Weight	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Features	Encoder Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]
Panasonic Industrial Automation Sales MDME102GCG	AC Motor	Connector	200 VAC	0.866 in	22 mm	2000 RPM	5.709 in	145 mm	1000 W	55 mm	2.165 in	14300 mNm	2025 oz-in	Servomotor	CE CSA cULus TUV UL	11 lbs	5 kg	4770 mNm	675.5 oz-in	Key Oil Seal	Incremental	5.118 in	130 mm	5.118 "	130 mm	40 °C
Panasonic Industrial Automation Sales MDME102S1G	AC Motor	Connector	200 VAC	0.866 in	22 mm	2000 RPM	5.709 in	145 mm	1000 W	55 mm	2.165 in	14300 mNm	2025 oz-in	Servomotor	CE CSA cULus TUV UL	11 lbs	5 kg	4770 mNm	675.5 oz-in	Key Oil Seal	Absolute	5.118 in	130 mm	5.118 "	130 mm	40 °C
Panasonic Industrial Automation Sales MDME102GCH	AC Motor	Connector	200 VAC	0.866 in	22 mm	2000 RPM	5.709 in	145 mm	1000 W	55 mm	2.165 in	14300 mNm	2025 oz-in	Servomotor	CE CSA cULus TUV UL	15 lbs	6.8 kg	4770 mNm	675.5 oz-in	Brake Key Oil Seal	Incremental	5.118 in	130 mm	5.118 "	130 mm	40 °C
Panasonic Industrial Automation Sales MDME102S1H	AC Motor	Connector	200 VAC	0.866 in	22 mm	2000 RPM	5.709 in	145 mm	1000 W	55 mm	2.165 in	14300 mNm	2025 oz-in	Servomotor	CE CSA cULus TUV UL	15 lbs	6.8 kg	4770 mNm	675.5 oz-in	Brake Key Oil Seal	Absolute	5.118 in	130 mm	5.118 "	130 mm	40 °C
Panasonic Industrial Automation Sales MDME102G1G	AC Motor	Connector	200 VAC	0.866 in	22 mm	2000 RPM	5.709 in	145 mm	1000 W	55 mm	2.165 in	14300 mNm	2025 oz-in	Servomotor	CE CSA cULus TUV UL	11 lbs	5 kg	4770 mNm	675.5 oz-in	Key Oil Seal	Incremental	5.118 in	130 mm	5.118 "	130 mm	40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MDME102 Series

AC Motor Servomotor 2000 RPM 1kW Incremental 200VAC

Documents

Technical documentation and resources

No documents available
