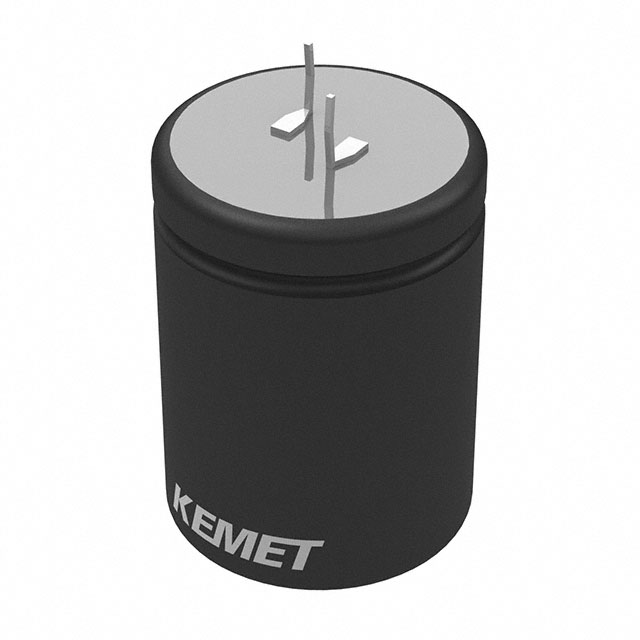

ALC70D302EH200

Active

KEMET

CAP ALUM 3000UF 20% 200V SNAP TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ALC70D302EH200 Spec

ALC70D302EH200

Active

KEMET

CAP ALUM 3000UF 20% 200V SNAP TH

Deep-Dive with AI

DocumentsDatasheet ALC70D302EH200 Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALC70D302EH200

Applications	General Purpose
Capacitance	3000 µF
ESR (Equivalent Series Resistance)	81 mOhm
Height - Seated (Max) [Max] [z]	62 mm
Height - Seated (Max) [Max] [z]	2.441 in
Impedance	53 mOhms
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	18000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ High Frequency	9.3 A
Ripple Current @ Low Frequency	5.67 A
Size / Dimension [diameter]	1.575 "
Size / Dimension [diameter]	40 mm
Tolerance	20 %
Voltage - Rated	200 V

ALC70D Series

Part	Tolerance	Capacitance	Voltage - Rated	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Polarization	Lifetime @ Temp.	Mounting Type	Ripple Current @ High Frequency	Package / Case	ESR (Equivalent Series Resistance)	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET ALC70D241BD350	20 %	240 µF	350 V	1.34 A	0.394 in	10 mm	Polar	10000 Hrs	Through Hole	3.3 A	Radial Can - Snap-In	583 mOhm	General Purpose	42 mm	1.654 in	303 mOhms	85 °C	-40 °C	25 mm	0.984 "
KEMET ALC70D183EB040	20 %	18000 µF	40 V	6.19 A	0.394 in	10 mm	Polar	18000 Hrs	Through Hole	7.21 A	Radial Can - Snap-In	51 mOhm	General Purpose			44 mOhms	85 °C	-40 °C	40 mm	1.575 "
KEMET ALC70D561DD350	20 %	560 µF	350 V	2.53 A	0.394 in	10 mm	Polar	15000 Hrs	Through Hole	5.93 A	Radial Can - Snap-In	253 mOhm	General Purpose	42 mm	1.654 in	133 mOhms	85 °C	-40 °C	35 mm	1.378 in
KEMET ALC70D361BB200	20 %	360 µF	200 V	1.33 A	0.394 in	10 mm	Polar	10000 Hrs	Through Hole	2.61 A	Radial Can - Snap-In	613 mOhm	General Purpose			382 mOhms	85 °C	-40 °C	25 mm	0.984 "
KEMET ALC70D302EH200	20 %	3000 µF	200 V	5.67 A	0.394 in	10 mm	Polar	18000 Hrs	Through Hole	9.3 A	Radial Can - Snap-In	81 mOhm	General Purpose			53 mOhms	85 °C	-40 °C	40 mm	1.575 "	62 mm	2.441 in
KEMET ALC70D102EH450	20 %	1000 µF	450 V	4.11 A	0.394 in	10 mm	Polar	18000 Hrs	Through Hole	8.53 A	Radial Can - Snap-In	148 mOhm	General Purpose			85 mOhms	85 °C	-40 °C	40 mm	1.575 "	62 mm	2.441 in
KEMET ALC70D683EL040	20 %	68000 µF	40 V	12.93 A	0.394 in	10 mm	Polar	18000 Hrs	Through Hole	14.36 A	Radial Can - Snap-In	16 mOhm	General Purpose			14 mOhms	85 °C	-40 °C	40 mm	1.575 "	82 mm	3.228 in
KEMET ALC70D471EB350	20 %	470 µF	350 V	2.29 A	0.394 in	10 mm	Polar	18000 Hrs	Through Hole	5 A	Radial Can - Snap-In	312 mOhm	General Purpose			166 mOhms	85 °C	-40 °C	40 mm	1.575 "
KEMET ALC70D242EF200	20 %	2.4 mF	200 V	4.9 A	0.394 in	10 mm	Polar	18000 Hrs	Through Hole	8.13 A	Radial Can - Snap-In	101 mOhm	General Purpose			66 mOhms	85 °C	-40 °C	40 mm	1.575 "	52 mm	2.047 in
KEMET ALC70D122BB100	20 %	1.2 mF	100 V	2.39 A	0.394 in	10 mm	Polar	10000 Hrs	Through Hole	3.28 A	Radial Can - Snap-In	221 mOhm	General Purpose			175 mOhms	85 °C	-40 °C	25 mm	0.984 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	216	$ 7.77

Description

General part information

ALC70D Series

3000 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 81mOhm @ 100Hz 18000 Hrs @ 85°C
