FSSL096NG

Active

Belden Inc.

CBL FIBER OPTIC

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC

Technical Specifications

Parameters and characteristics for this part

Specification	FSSL096NG

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	9 µm
Features	Rip Cord
Features	96 Fibers
Jacket (Insulation) Diameter [diameter]	12.32 mm
Jacket (Insulation) Diameter [diameter]	0.485 in
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Style	Multiple Fibers
Tensile Strength	81.6 kg
Type	Singlemode

Part	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Jacket (Insulation) Material	Features	Features	Tensile Strength	Cladding Diameter [diameter]	Core Diameter [diameter]	Style	Type
Belden Inc. FSSL096NG	-40 °C	70 °C	12.32 mm	0.485 in	Black	Polyethylene (PE)	Rip Cord	96 Fibers	81.6 kg	125 µm	9 µm	Multiple Fibers	Singlemode
Belden Inc. FSSL0966D

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 4.16

General part information

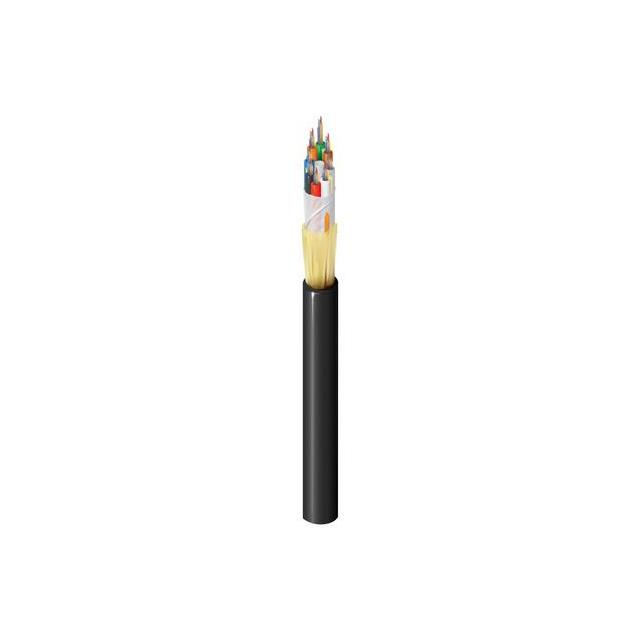

Fiber Optic Cable Black Singlemode 125µm

Technical documentation and resources
