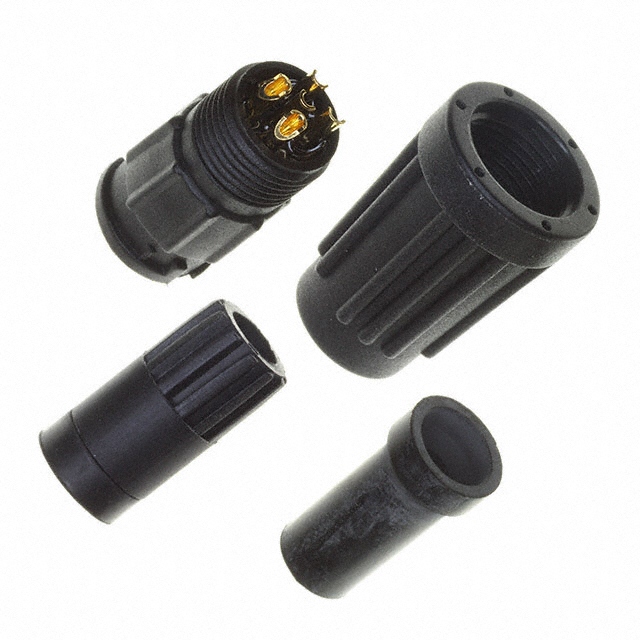

A-CR-05BMMA-L180-WP

Obsolete

Assmann WSW Components

CONN RCPT MALE 5P GOLD SLDR CUP

Search across all available documentation for this part.

Obsolete

Assmann WSW Components

CONN RCPT MALE 5P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	A-CR-05BMMA-L180-WP

Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP66
Mounting Type	Free Hanging (In-Line)
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded

Part	Contact Finish - Mating	Color	Current Rating (Amps)	Connector Type	Shell Material	Fastening Type	Shielding	Ingress Protection	Features	Backshell Material, Plating	Mounting Type	Orientation	Contact Material	Primary Material	Termination	Mounting Feature
Assmann WSW Components A-CR-05BMMA-L180-WP	Gold	Black	5 A	Male Pins Receptacle	Glass Filled Nylon Polyamide (PA)	Bayonet Lock	Unshielded	IP66	Backshell	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Keyed	Copper Alloy	Plastic
Assmann WSW Components A-CR-05PMMP-LC-WP	Gold	Black	5 A	Male Pins Receptacle	Glass Filled Nylon Polyamide (PA)	Bayonet Lock	Unshielded	IP67 - Dust Tight Waterproof			Panel Mount Through Hole	Keyed	Copper Alloy	Plastic	Solder	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Circular Connector Receptacle, Male Pins Solder Cup
