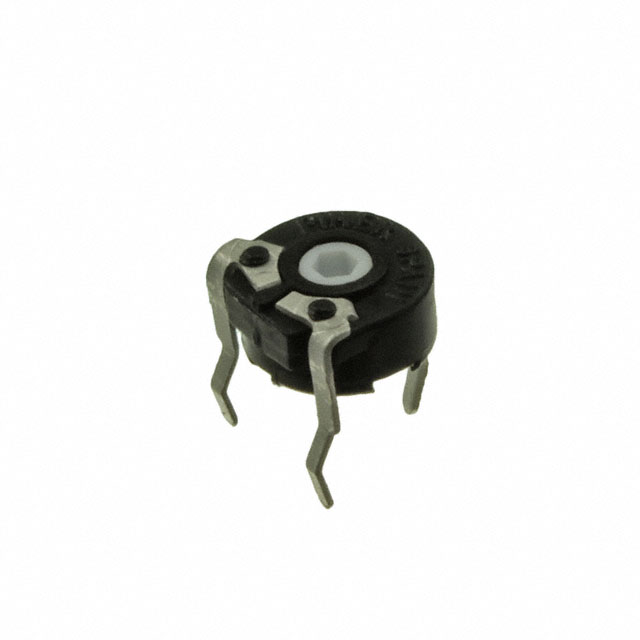

PT10MV11-105A2020-S
ActiveAmphenol Piher Sensing Systems
TRIMMER 1M OHM 0.15W PC PIN TOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PT10MV11-105A2020-S
ActiveAmphenol Piher Sensing Systems
TRIMMER 1M OHM 0.15W PC PIN TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PT10MV11-105A2020-S |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Power (Watts) | 150 mW |
| Resistance | 1 MOhms |
| Resistive Material | Carbon |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 0.406 in |
| Size / Dimension [diameter] | 10.3 mm |
| Temperature Coefficient | 300 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 0.39 | |
| 10 | $ 0.31 | |||
| 25 | $ 0.29 | |||
| 50 | $ 0.27 | |||
| 100 | $ 0.25 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| 5000 | $ 0.17 | |||
Description
General part information
PT10MV11 Series
1 MOhms 0.15W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
