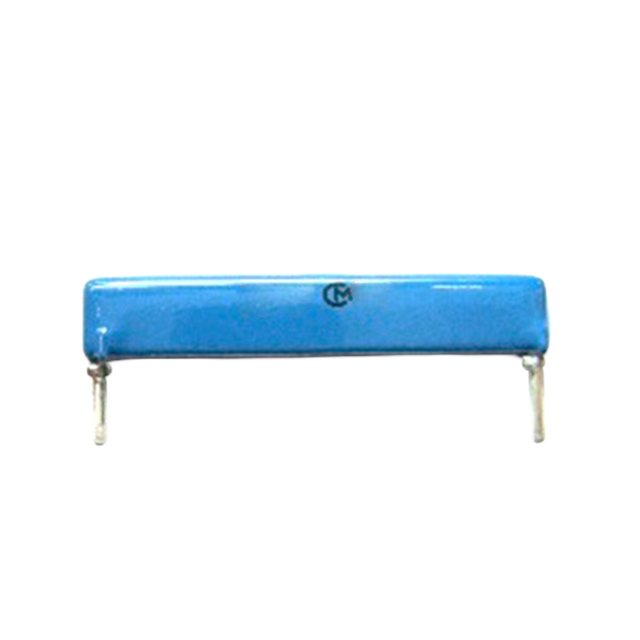

MHR0424SA107F70 - MHR Series

MHR0424SA107F70

Active
Murata Power Solutions Inc.

RES 0.1 OHM 1% 1.4W RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet
MHR0424SA107F70 - MHR Series

MHR0424SA107F70

Active
Murata Power Solutions Inc.

RES 0.1 OHM 1% 1.4W RADIAL

Deep-Dive with AI

DocumentsDatasheetDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationMHR0424SA107F70
CompositionThick Film
FeaturesHigh Voltage
Height - Seated (Max) [Max] [z]0.256 in
Height - Seated (Max) [Max] [z]6.5 mm
Number of Terminations2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Package / CaseRadial
Power (Watts)1.4 W
Resistance100 MOhms
Size / Dimension [x]0.996 in
Size / Dimension [x]25.3 mm
Size / Dimension [y]2.5 mm
Size / Dimension [y]0.098 in
Tolerance1 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.71
10$ 1.01
50$ 0.75
100$ 0.66
500$ 0.52
1000$ 0.47
5000$ 0.39
10000$ 0.37
NewarkEach 250$ 0.67
500$ 0.60
1000$ 0.55
SagerN/A 250$ 0.41
500$ 0.40

Description

General part information

MHR0424SA Series

100 MOhms ±1% 1.4W Through Hole Resistor Radial High Voltage Thick Film

Documents

Technical documentation and resources

Datasheet

Document

Datasheet

Datasheet
