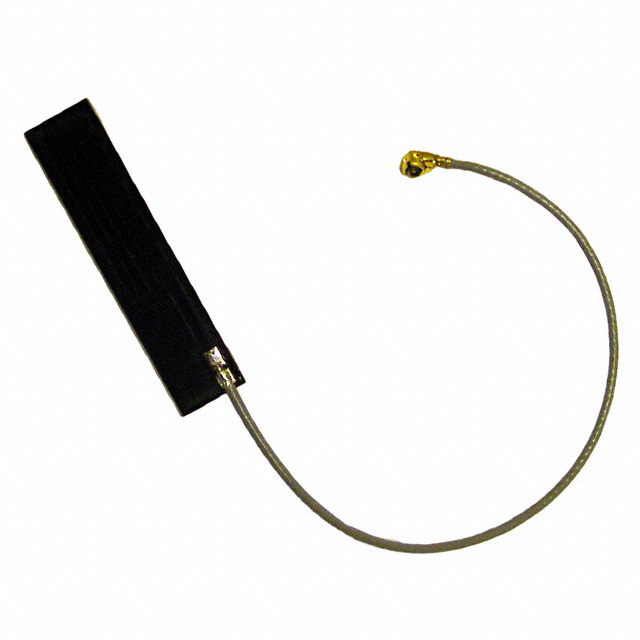

ANT-GSMMQB-UFL
ActiveRF SOLUTIONS
RF ANT 850MHZ/900MHZ FLAT PATCH
Deep-Dive with AI
Search across all available documentation for this part.
ANT-GSMMQB-UFL
ActiveRF SOLUTIONS
RF ANT 850MHZ/900MHZ FLAT PATCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-GSMMQB-UFL |
|---|---|
| Antenna Type | Flat Patch |
| Applications | GSM |
| Features | Cable |
| Features | 200 mm |
| Frequency (Center/Band) | 900 MHz, 850 MHz, 1.9 GHz, 1.8 GHz |
| Gain | 1 dBi |
| Height (Max) | 0.8 mm |
| Height (Max) [Max] | 0.031 in |
| Mounting Type | Adhesive |
| Number of Bands | 4 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | Cellular |
| Termination | I-PEX MHF1, U.FL (UMCC) |
| VSWR | 2, 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.10 | |
Description
General part information
ANT-GSMMQB Series
RF ANTENNA GSM Flat Patch U.FL (UMCC), I-PEX MHF1 Adhesive
Documents
Technical documentation and resources
No documents available
