1561 YL005

Active

ALPHA WIRE

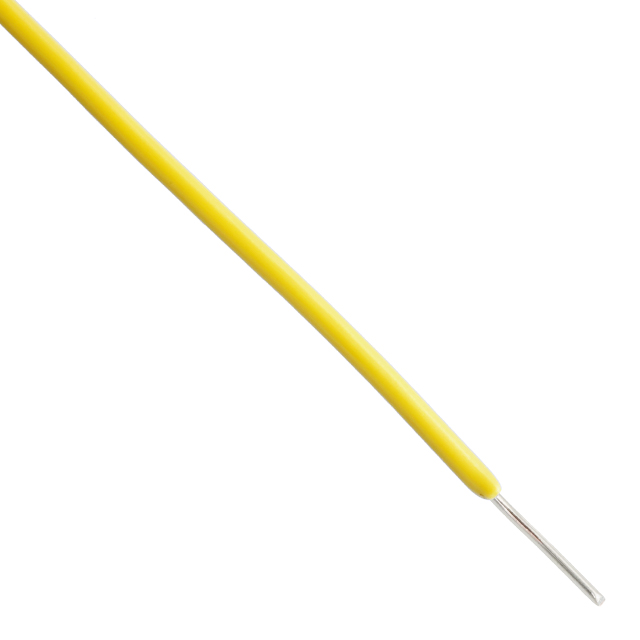

WIRE, HOOK UP MIL-W-76B TYPE MW, PVC, YELLOW, 22 AWG, 0.324 MM², 100 FT

Search across all available documentation for this part.

Active

ALPHA WIRE

WIRE, HOOK UP MIL-W-76B TYPE MW, PVC, YELLOW, 22 AWG, 0.324 MM², 100 FT

Technical Specifications

Parameters and characteristics for this part

Specification	1561 YL005

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	1.45 mm
Jacket (Insulation) Diameter [diameter]	0.057 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in
Jacket (Insulation) Thickness	0.41 mm
Jacket Color	Yellow
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Qualification	MIL-W-76B Type MW
Voltage	1000 V
Wire Gauge	22 AWG

Part	Length	Length	Wire Gauge	Jacket (Insulation) Material	Qualification	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Conductor Strand	Jacket Color	Cable Type	Length [x]	Length [x]
ALPHA WIRE 1561 OR001	1000 ft	304.8 m	22 AWG	Poly-Vinyl Chloride (PVC)	MIL-W-76B Type MW	Copper Tinned	-40 °C	80 C	1.45 mm	0.057 "	0.016 in	0.41 mm	1000 V	Solid	Orange	Hook-Up
ALPHA WIRE 1561 SL001	1000 ft	304.8 m	22 AWG	Poly-Vinyl Chloride (PVC)	MIL-W-76B Type MW	Copper Tinned	-40 °C	80 C	1.45 mm	0.057 "	0.016 in	0.41 mm	1000 V	Solid	Slate	Hook-Up
ALPHA WIRE 1561 RD005			22 AWG	Poly-Vinyl Chloride (PVC)	MIL-W-76B Type MW	Copper Tinned	-40 °C	80 C	1.45 mm	0.057 "	0.016 in	0.41 mm	1000 V	Solid	Red	Hook-Up	30.5 m	100 ft
ALPHA WIRE 1561 BR005			22 AWG	Poly-Vinyl Chloride (PVC)	MIL-W-76B Type MW	Copper Tinned	-40 °C	80 C	1.45 mm	0.057 "	0.016 in	0.41 mm	1000 V	Solid	Brown	Hook-Up	30.5 m	100 ft
ALPHA WIRE 1561 GR001	1000 ft	304.8 m	22 AWG	Poly-Vinyl Chloride (PVC)	MIL-W-76B Type MW	Copper Tinned	-40 °C	80 C	1.45 mm	0.057 "	0.016 in	0.41 mm	1000 V	Solid	Green	Hook-Up
ALPHA WIRE 1561 SL005			22 AWG	Poly-Vinyl Chloride (PVC)	MIL-W-76B Type MW	Copper Tinned	-40 °C	80 C	1.45 mm	0.057 "	0.016 in	0.41 mm	1000 V	Solid	Slate	Hook-Up	30.5 m	100 ft
ALPHA WIRE 1561 YL005			22 AWG	Poly-Vinyl Chloride (PVC)	MIL-W-76B Type MW	Copper Tinned	-40 °C	80 C	1.45 mm	0.057 "	0.016 in	0.41 mm	1000 V	Solid	Yellow	Hook-Up	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 AWG Hook-Up Wire Solid Yellow 1000V 100.0' (30.5m)
